Question: please show all the solution steps 2- The DC voltage value of a signal varies within the range of V=0V - 20 V and is

please show all the solution steps

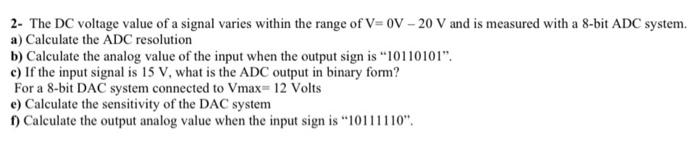

2- The DC voltage value of a signal varies within the range of V=0V - 20 V and is measured with a 8-bit ADC system. a) Calculate the ADC resolution b) Calculate the analog value of the input when the output sign is "10110101". c) If the input signal is 15 V, what is the ADC output in binary form? For a 8-bit DAC system connected to Vmax=12 Volts e) Calculate the sensitivity of the DAC system 1) Calculate the output analog value when the input sign is "10111110". 2- The DC voltage value of a signal varies within the range of V=0V - 20 V and is measured with a 8-bit ADC system. a) Calculate the ADC resolution b) Calculate the analog value of the input when the output sign is "10110101". c) If the input signal is 15 V, what is the ADC output in binary form? For a 8-bit DAC system connected to Vmax=12 Volts e) Calculate the sensitivity of the DAC system 1) Calculate the output analog value when the input sign is "10111110

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
