Question: Please show all work for member ABCD with a solid rectangular cross section ( 2 ' ' x 1 ' ' ) , bending about

Please show all work

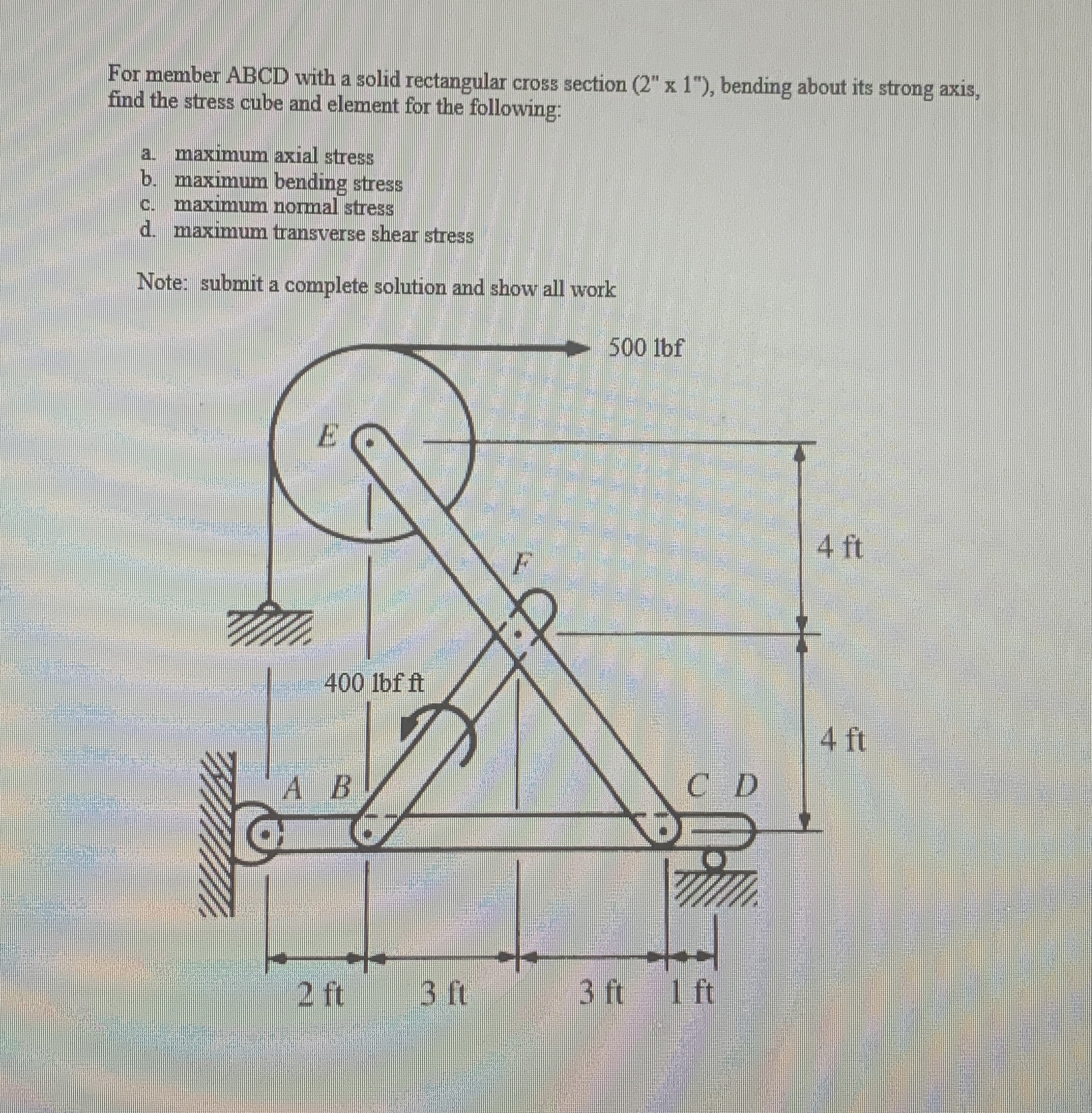

for member ABCD with a solid rectangular cross section (2'' x 1''), bending about its strong axis,
find the stress cube and element for the following:
a. maximum axial stress
b. maximum bending stress
c. maximum normal stress
d. maximum transverse shear stress
Note: submit a complete solution and show all work
Please show all work for member ABCD with a solid

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
