please show sfd and bmd

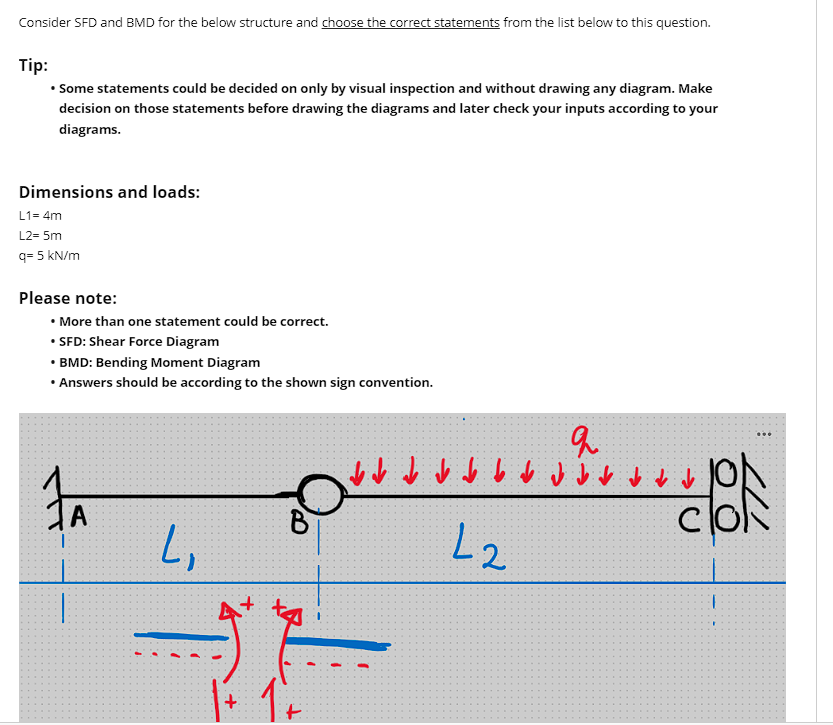

Consider SFD and BMD for the below structure and choose the correct statements from the list below to this question.

Tip:

Some statements could be decided on only by visual inspection and without drawing any diagram. Make

decision on those statements before drawing the diagrams and later check your inputs according to your

diagrams.

Dimensions and loads:

$\{$:$[$L$1=4$m$],[$L$2=5$m$],[$q$=5$kN$//$m$]$:$\}$

Please note:

More than one statement could be correct.

SFD: Shear Force Diagram

BMD: Bending Moment Diagram

Answers should be according to the shown sign convention.

Consider SFD and BMD for the below structure and choose the correct statements from the list below to this question.

Tip:

Some statements could be decided on only by visual inspection and without drawing any diagram. Make

decision on those statements before drawing the diagrams and later check your inputs according to your

diagrams.

Dimensions and loads:

$\{$:$[$L$1=4$m$],[$L$2=5$m$],[$q$=5$kN$//$m$]$:$\}$

Please note:

More than one statement could be correct.

SFD: Shear Force Diagram

BMD: Bending Moment Diagram

Answers should be according to the shown sign convention.

SFD has zero value at C$.$

Moment at A is negative.

Absolute value of moment at A is $100$kN$.$m

SFD has a jump at B$.$

Maximum moment happens at the middle of BC$.$

Moment at C is positive.

Shear force at B is zero.

Shear force changes linearly from A to B$.$

Shear force at A is positive.

Value of shear force at A is independent of length of AB$.$
