Question: * Please show the way/method how do you know/find it ? 9. Given the following gate network with output Z: BZ BD a. Write the

* Please show the way/method how do you know/find it ?

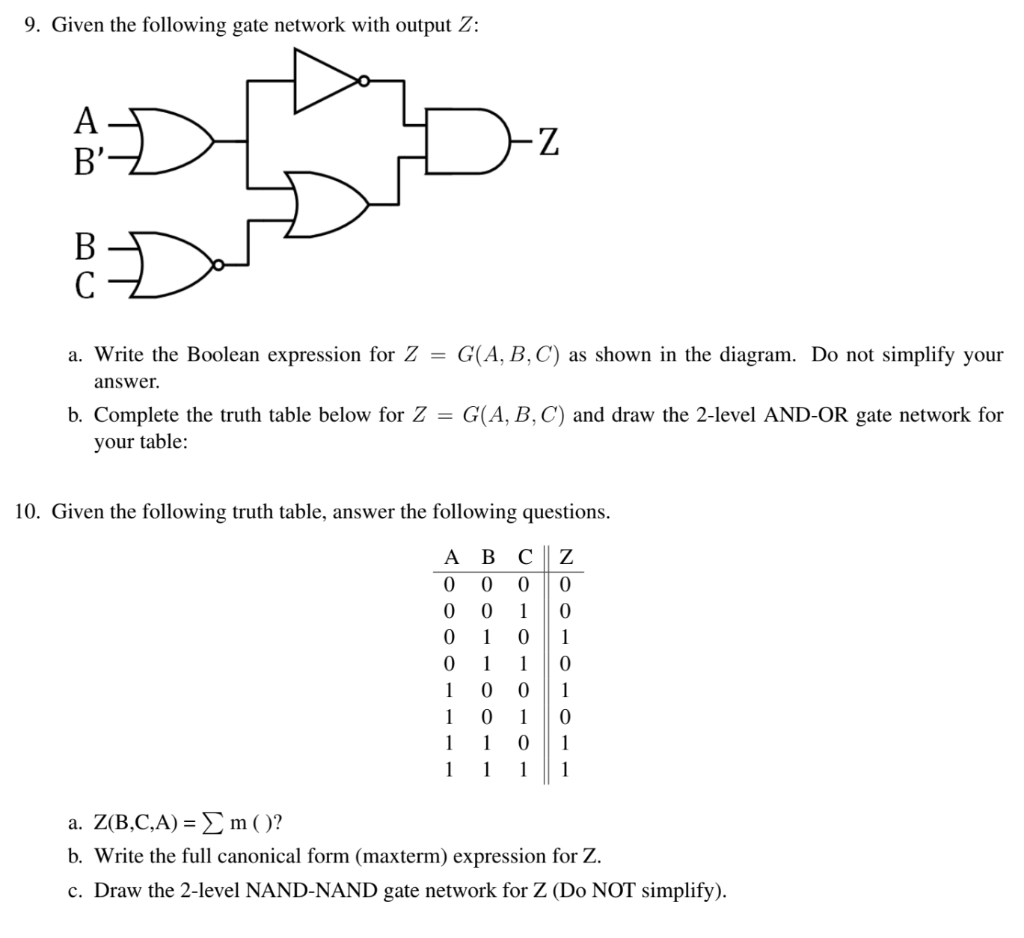

9. Given the following gate network with output Z: BZ BD a. Write the Boolean expression for Z = G(A, B,C) as shown in the diagram. Do not simplify your answer. b. Complete the truth table below for Z = G(A, B, C) and draw the 2-level AND-OR gate network for your table: 10. Given the following truth table, answer the following questions. A B C z 0 0 0 0 0 0 10 0 1 0 1 0 1 1 0 1 0 0 1 1 0 1 1 1 0 1 1 1 1 1 a. Z(B,C,A) = m()? b. Write the full canonical form (maxterm) expression for Z. c. Draw the 2-level NAND-NAND gate network for Z (Do NOT simplify)

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
