Question: please show work Example 1 ( Problem P 8 - 6 , 2 7 7 , Philpot 3 e ) : A beam is subjected

please show work

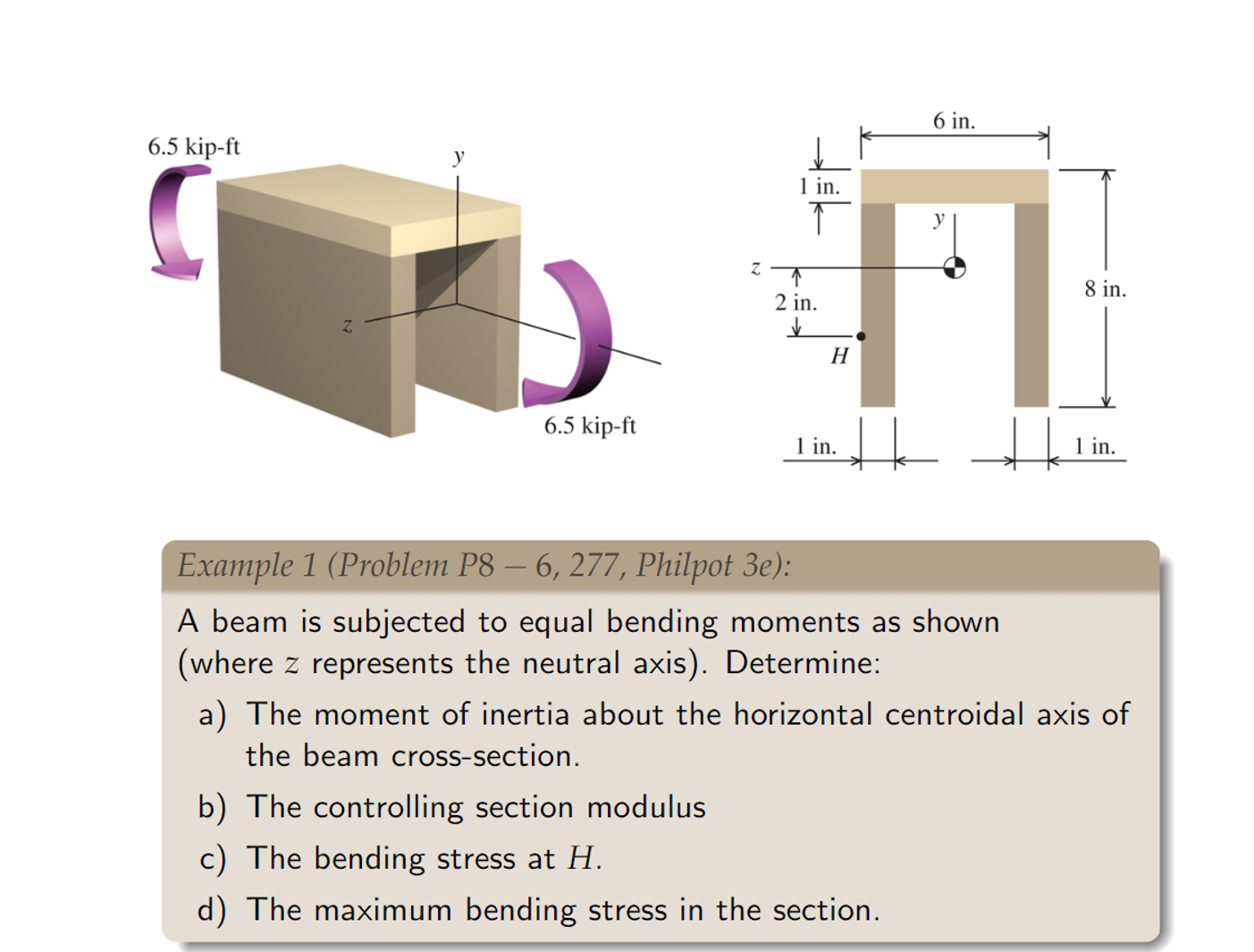

Example 1(Problem P8-6,277, Philpot 3e):
A beam is subjected to equal bending moments as shown
(where z represents the neutral axis). Determine:
a) The moment of inertia about the horizontal centroidal axis of
the beam cross-section.
b) The controlling section modulus
c) The bending stress at H.
d) The maximum bending stress in the section.
