Please show your work for each chart, and please complete all of the charts, thank you. I am confused and lost and I really need to get this done, I hope the service I pay chegg monthly actually pays off .

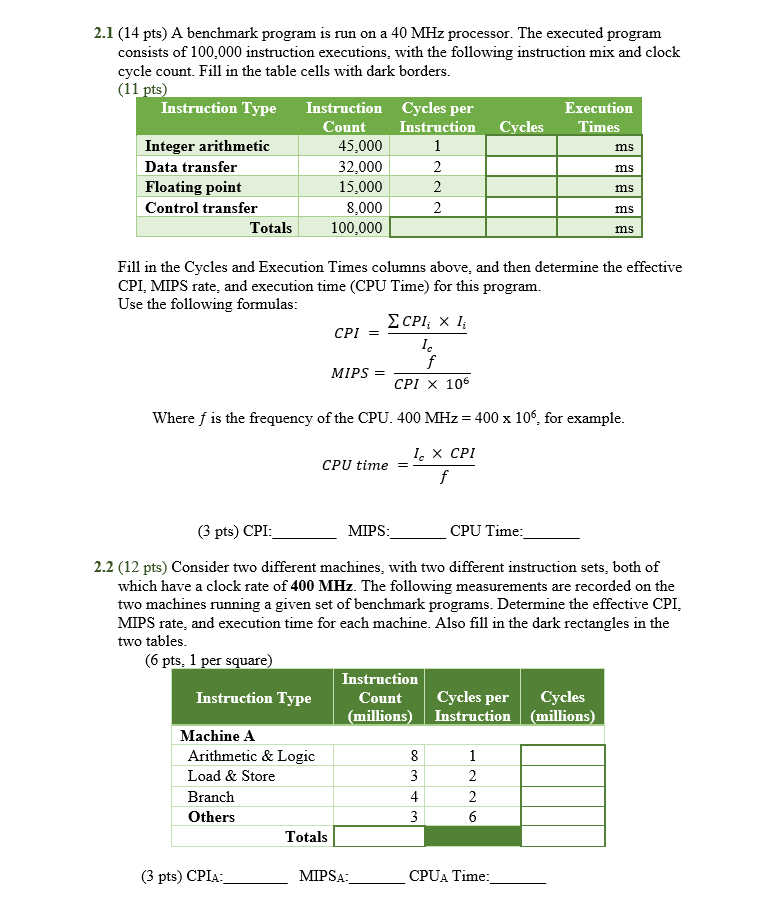

2.1 (14 pts) A benchmark program is run on a 40 MHz processor. The executed program consists of 100,000 instruction executions, with the following instruction mix and clock cycle count. Fill in the table cells with dark borders. Instruction Type Instruction Cycles per Count Instruction Cycles Execution limes Integer arithmetid Data transfer Floating point Control transfer 45,000 32,000 15,000 8,000 100,000 ms ms ms ms ms Totals Fill in the Cycles and Execution Times columns above, and then determine the effective CPI, MIPS rate, and execution time (CPU Time) for this program. Use the following formulas CPI = MIPS-CP1 106 Where f is the frequency of the CPU. 400 MHz 400 x 106, for example Ic CPI CPU time_ (3 pts) CPI MIPS CPU Time 2.2 (12 pts) Consider two different machines, with two different instruction sets, both of which have a clock rate of 400 MHz. The following measurements are recorded on the two machines running a given set of benchmark programs. Determine the effective CPI, MIPS rate, and execution time for each machine. Also fill in the dark rectangles in the two tables (6 pts, 1 per square) Instruction Count Cycles per Cycles (millions) Instruction (millions) Instruction Type Machine A Arithmetic & Logic Load & Store Branch Others Totals (3 pts) CPIA: MIPSA: CPUA Time
