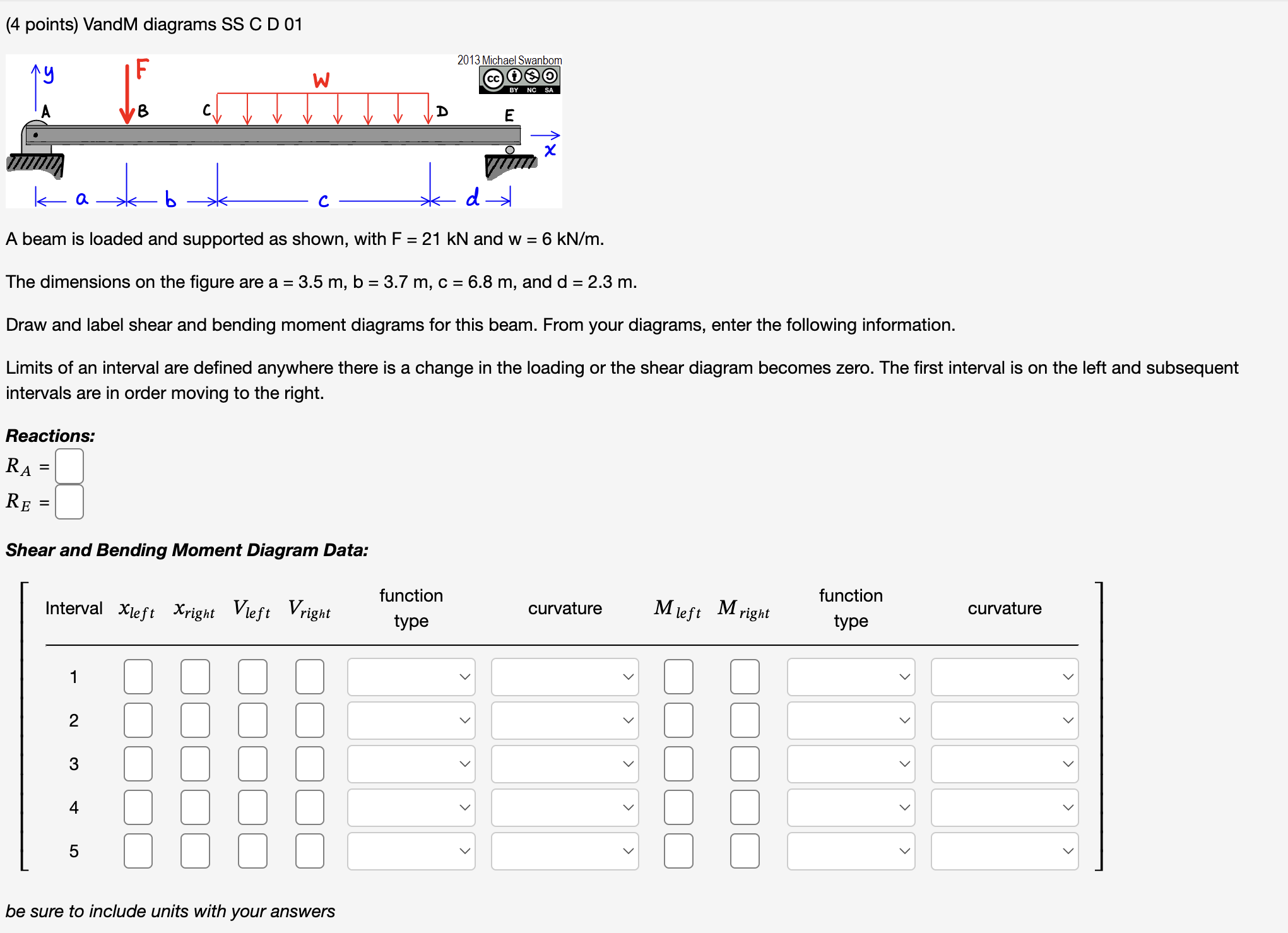

$(4$ points$)$ VandM diagrams $SSCD01$

A beam $is$ loaded and supported $as$ shown, with $F=21kN$ and $w=6k\frac{N}{m}.$

The dimensions $on$ the figure are $a=3\mathrm{.}5m,b=3\mathrm{.}7m,c=6\mathrm{.}8m,$ and $d=2\mathrm{.}3m.$

Draw and label shear and bending moment diagrams for this beam. From your diagrams, enter the following information.

Limits $ofan$ interval are defined anywhere there $is$ a change $in$ the loading $or$ the shear diagram becomes zero. The first interval $ison$ the left and subsequent

intervals are $in$ order moving $to$ the right.

Reactions:

$R_A=$

$R_E=$

Shear and Bending Moment Diagram Data:

$be$ sure $to$ include units with your answers
