Question: PLEASE SOLVE A double - loop planar structure shown in the figure below is made out of a thin wire with the resistance per unit

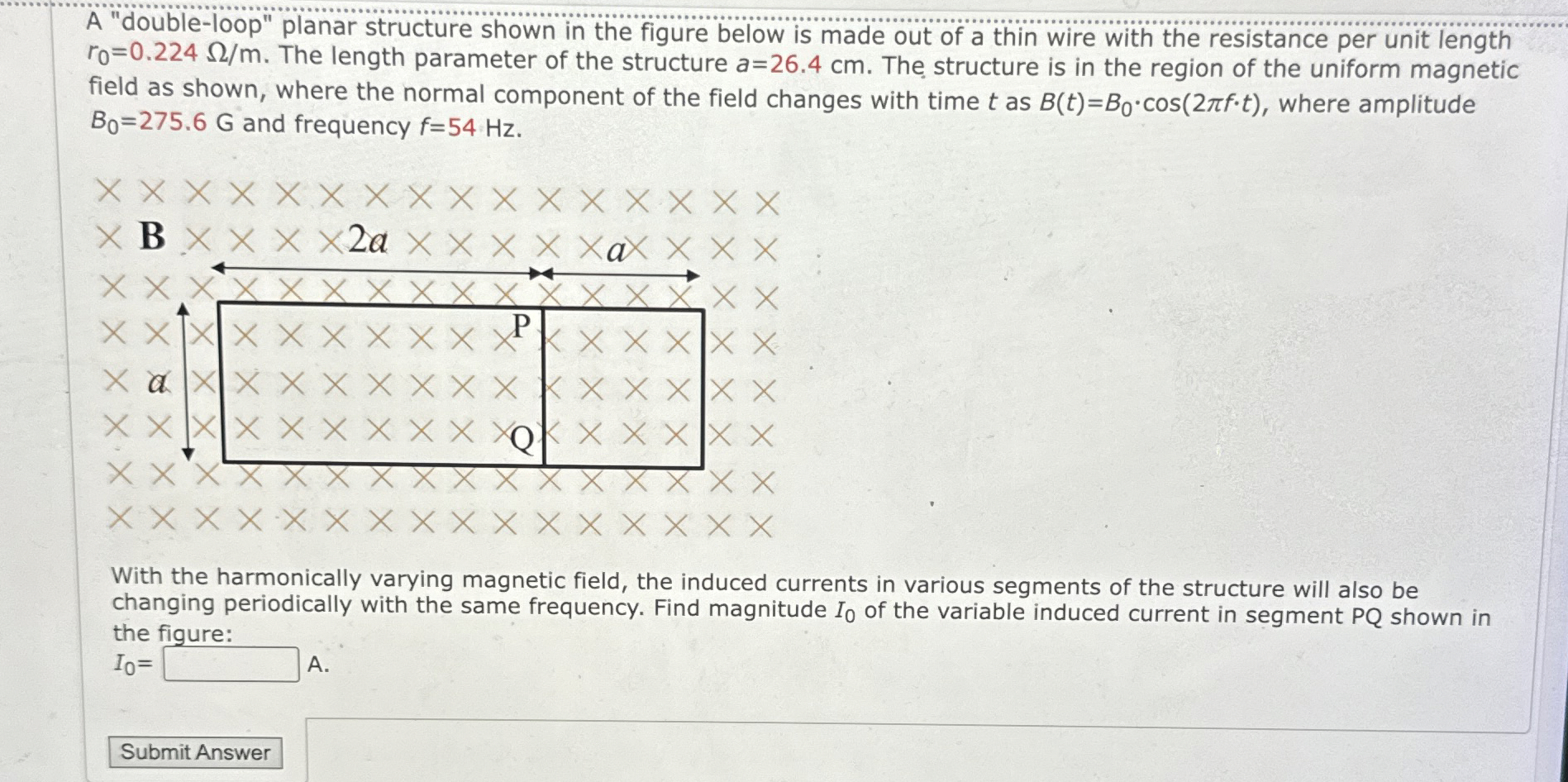

PLEASE SOLVE A "double-loop" planar structure shown in the figure below is made out of a thin wire with the resistance per unit length r0=0.224m. The length parameter of the structure a=26.4cm. The structure is in the region of the uniform magnetic field as shown, where the normal component of the field changes with time t as B(t)=B0*cos(2f*t), where amplitude B0=275.6G and frequency f=54Hz.
With the harmonically varying magnetic field, the induced currents in various segments of the structure will also be changing periodically with the same frequency. Find magnitude I0 of the variable induced current in segment PQ shown in the fiaure:
I0=q, A.
