Question: please solve all parts 1. (7 MARKS). Determine the minimum torque required to keep the gate closed and vertical under the water head of 3

please solve all parts

please solve all parts 1. (7 MARKS). Determine the minimum torque required

to keep the gate closed and vertical under the water head of

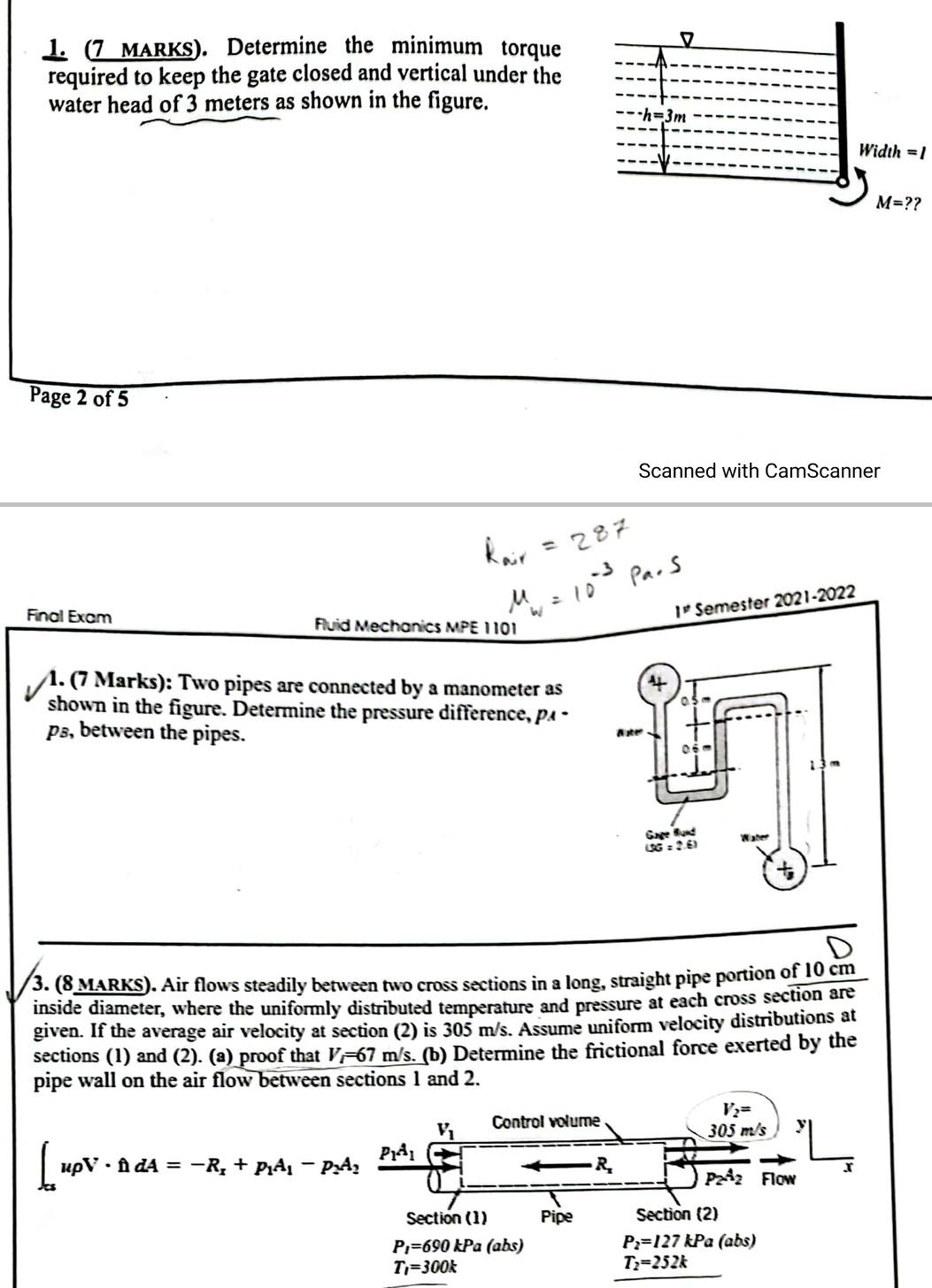

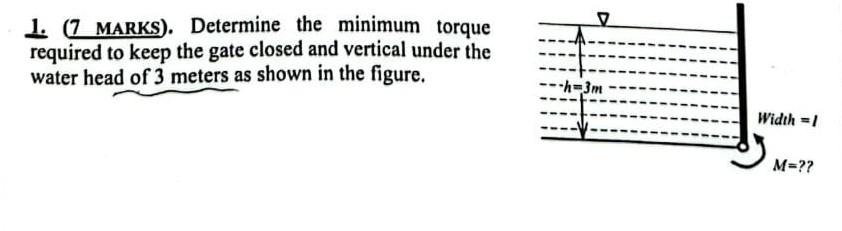

1. (7 MARKS). Determine the minimum torque required to keep the gate closed and vertical under the water head of 3 meters as shown in the figure. Page 2 of 5 Scanned with CamScanner 1. (7 Marks): Two pipes are connected by a manometer as shown in the figure. Determine the pressure difference, pA pB, between the pipes. 3. (8 MARKS). Air flows steadily between two cross sections in a long, straight pipe portion of 10cm inside diameter, where the uniformly distributed temperature and pressure at each cross section are given. If the average air velocity at section (2) is 305m/s. Assume uniform velocity distributions at sections (1) and (2). (a) proof that Vl=67m/s. (b) Determine the frictional force exerted by the pipe wall on the air flow between sections 1 and 2 . 1. (7 MARKS). Determine the minimum torque required to keep the gate closed and vertical under the water head of 3 meters as shown in the figure

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
