Question: please solve in 40 mins. 3. Simplify the following Boolean algebra expressions using karnaugh maps: a. AB'+A(B+C)' + B(B+C) b. [AB(C+(BD)') + (AB)*]CD c. A'BC+AB'C'+A'B'C'+AB'C+ABC

please solve in 40 mins. please solve in 40 mins. 3. Simplify the following Boolean algebra expressions

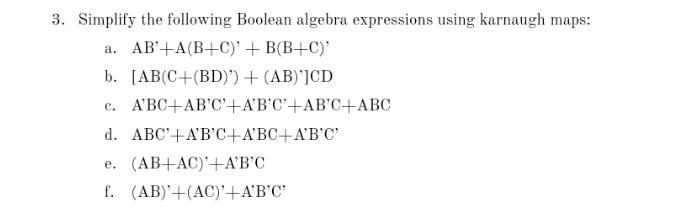

3. Simplify the following Boolean algebra expressions using karnaugh maps: a. AB'+A(B+C)' + B(B+C) b. [AB(C+(BD)') + (AB)*]CD c. A'BC+AB'C'+A'B'C'+AB'C+ABC d. ABC'+A'B'C+A'BC+A'B'C' e. (AB+AC) +A'B'C f. (AB)+(AC)'+A'B'C

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
