Question: Please solve in a paper a . Define the Kirchoff voltage law ( KVL ) and determine the relation of voltage in loop 1 and

Please solve in a paper

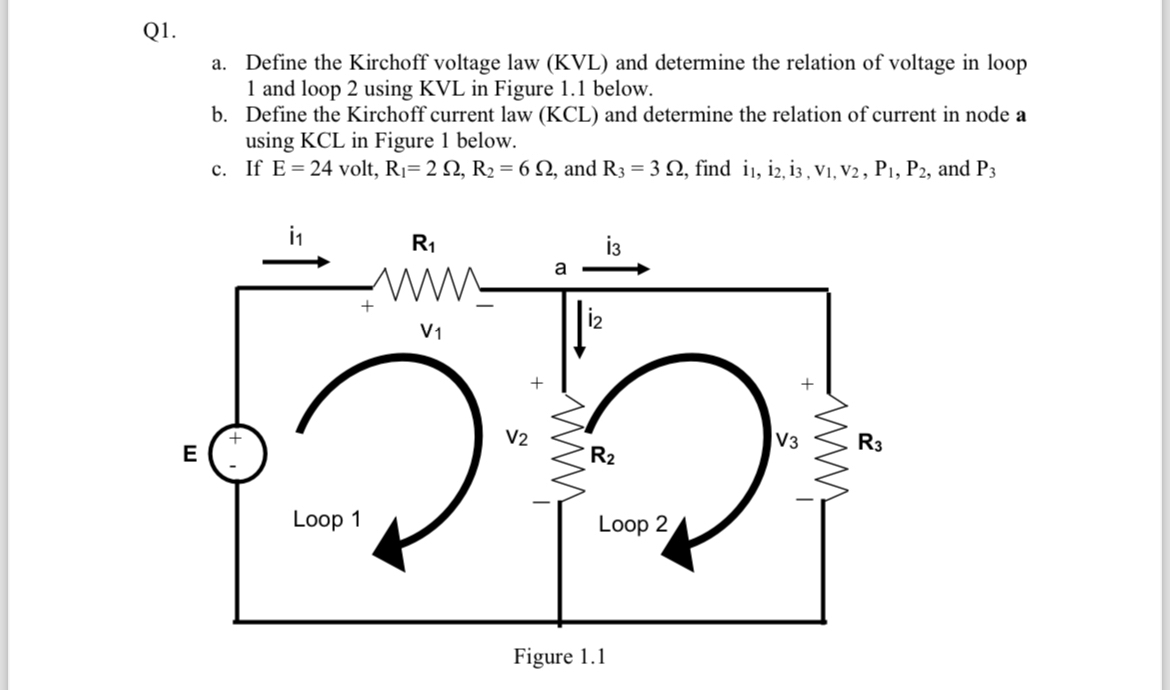

a. Define the Kirchoff voltage law (KVL) and determine the relation of voltage in loop 1 and loop 2 using KVL in Figure 1.1 below.
b. Define the Kirchoff current law (KCL) and determine the relation of current in node a using KCL in Figure 1 below.
c. If E=24 volt, R1=2,R2=6, and R3=3, find i1,i2,i3,v1,v2,P1,P2, and P3
