Question: please Solve part B, thanks 3. Two fresh feed streams containing benzene (B), toluene (T), and xylene (X) are fed to Column 1 in the

 please Solve part B, thanks 3. Two fresh feed streams containing

benzene (B), toluene (T), and xylene (X) are fed to Column 1

in the separation system shown in the diagram below. All of the

please Solve part B, thanks

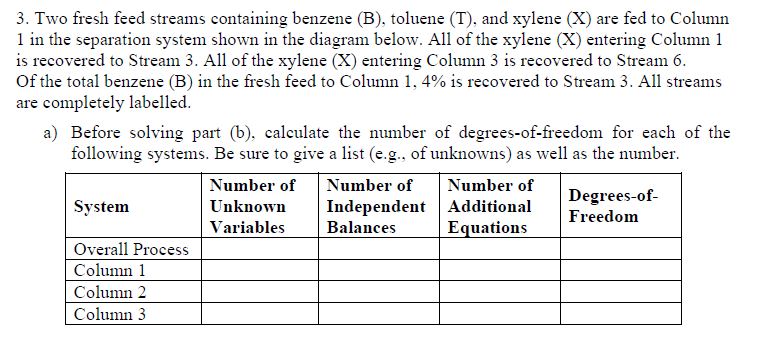

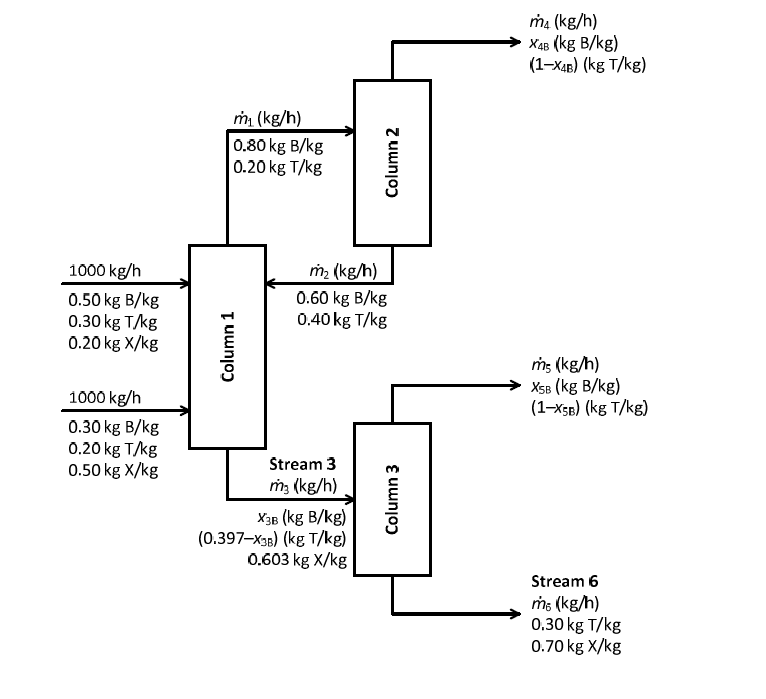

3. Two fresh feed streams containing benzene (B), toluene (T), and xylene (X) are fed to Column 1 in the separation system shown in the diagram below. All of the xylene (X) entering Column 1 is recovered to Stream 3. All of the xylene (X) entering Column 3 is recovered to Stream 6. Of the total benzene (B) in the fresh feed to Column 1, 4% is recovered to Stream 3. All streams are completely labelled. a) Before solving part (b), calculate the number of degrees-of-freedom for each of the following systems. Be sure to give a list (e.g., of unknowns) as well as the number. Number of Number of Number of Degrees-of- System Unknown Independent Additional Freedom Variables Balances Equations Overall Process Column 1 Column 2 Column 3 b) Calculate all unknown flow rates and mass fractions. ma (kg/h) X4B (kg B/kg) (1-X4B) (kg T/kg) m1 (kg/h) 0.80 kg B/kg 0.20 kg T/kg Column 2 1000 kg/h 0.50 kg B/kg 0.30 kg T/kg 0.20 kg X/kg m2 (kg/h) 0.60 kg B/kg 0.40 kg T/kg Column 1 m (kg/h) X5B (kg B/kg) (1-X5p) (kg T/kg) 1000 kg/h 0.30 kg B/kg 0.20 kg T/kg 0.50 kg X/kg Stream 3 mg (kg/h) X3B (kg B/kg) (0.397X3B) (kg T/kg) 0.603 kg X/kg Column 3 Stream 6 ma (kg/h) 0.30 kg T/kg 0.70 kg X/kg
