Question: Please solve problem 8 . 2 , thanks 8 . 1 Given an element with stresses as indicated in Fig. P 8 . 1 1

Please solve problem 8.2, thanks

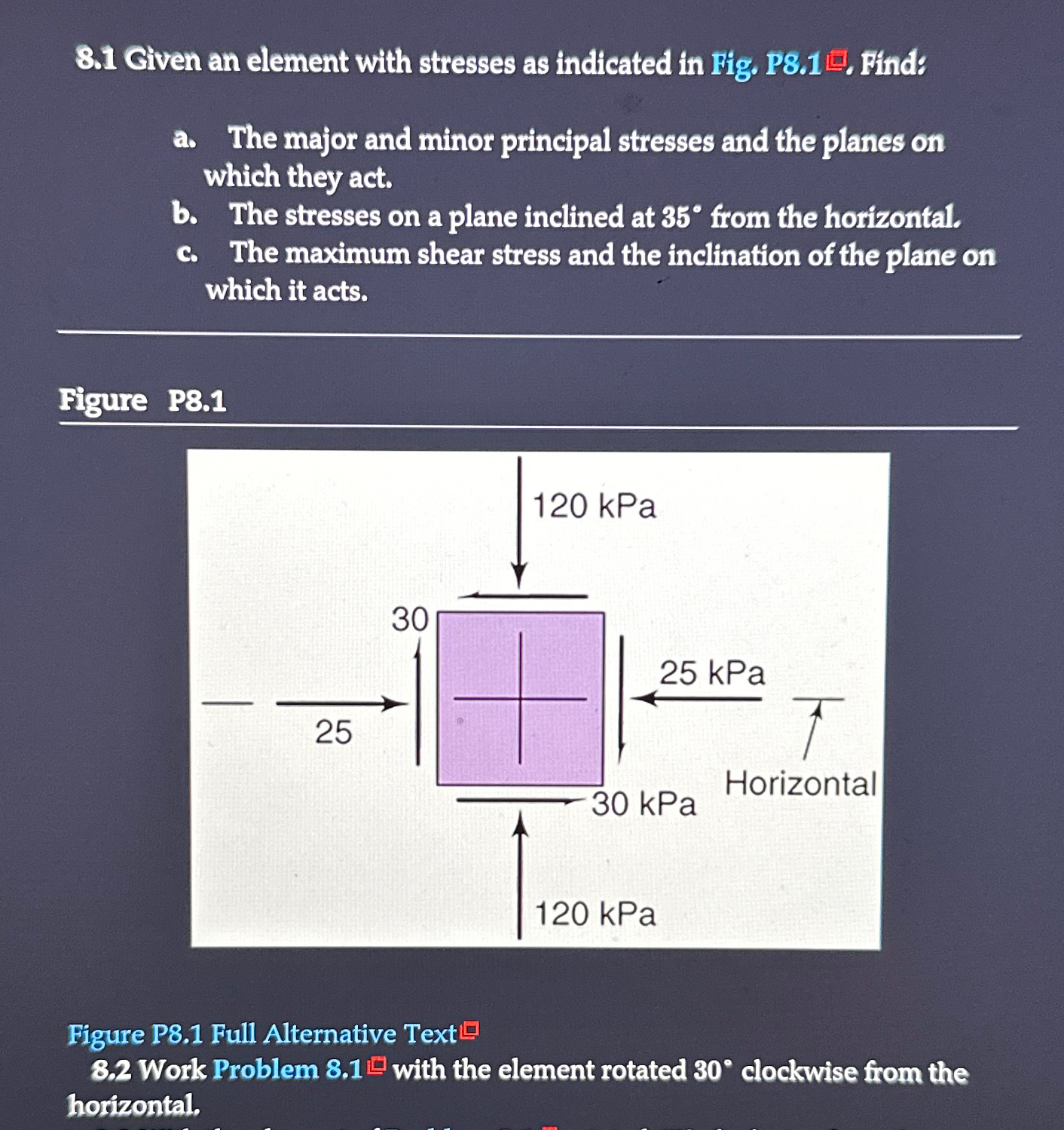

8.1 Given an element with stresses as indicated in Fig. P8.11. Find:
a. The major and minor principal stresses and the planes on which they act.
b. The stresses on a plane inclined at 35 from the horizontal.
c. The maximum shear stress and the inclination of the plane on which it acts.
Figure P8.1
Figure P8.1 Full Alternative Text
8.2 Work Problem 8.1 with the element rotated 30 clockwise from the horizontal.
Please solve problem 8 . 2 , thanks 8 . 1 Given
