Question: Please solve the problem by using x - y , n - t , r - coordinate The fixed horizontal guide carries a slider and

Please solve the problem by using x-y,n-t,r- coordinate

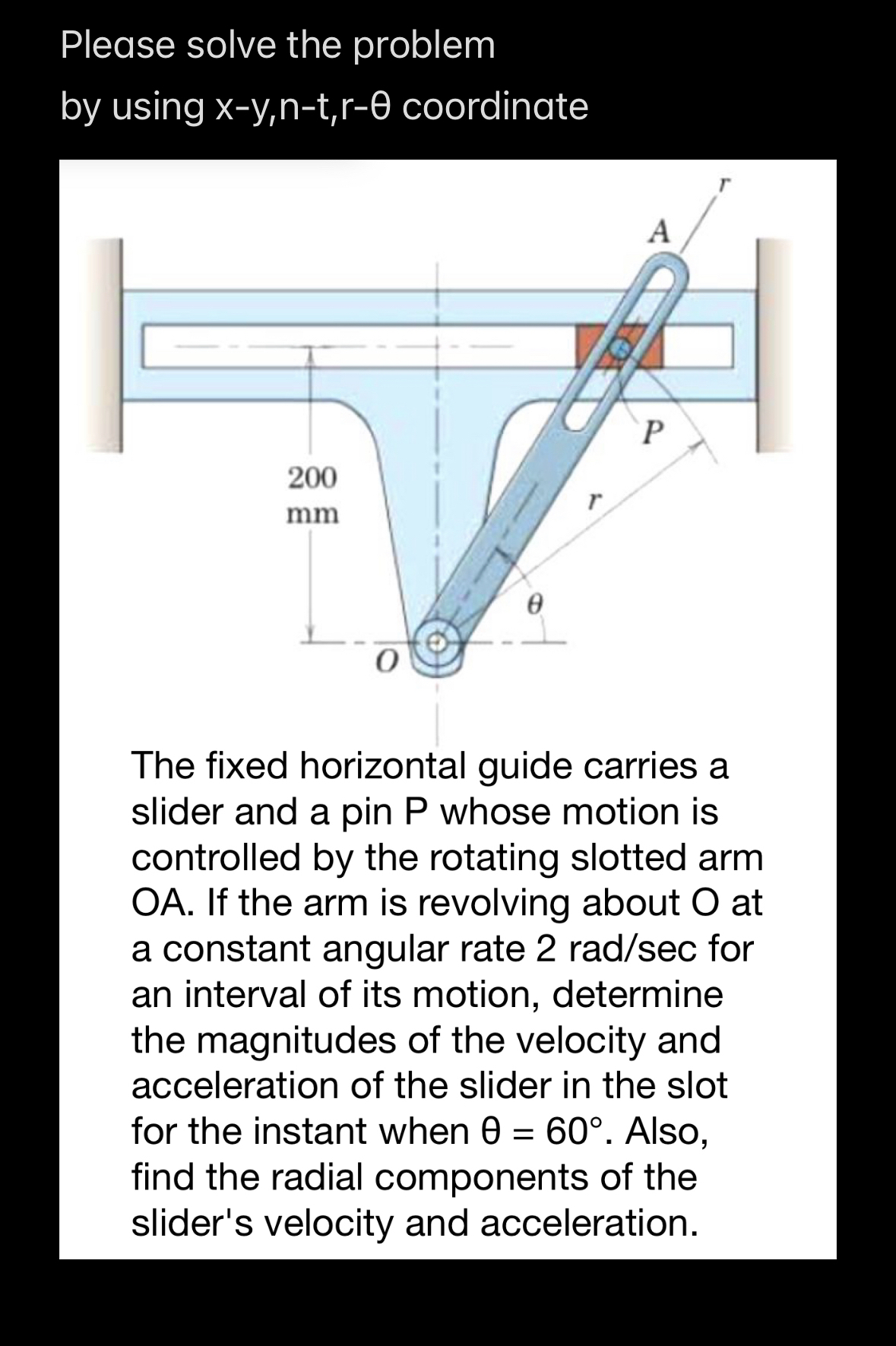

The fixed horizontal guide carries a slider and a pin P whose motion is controlled by the rotating slotted arm OA. If the arm is revolving about O at a constant angular rate 2rad/sec for an interval of its motion, determine the magnitudes of the velocity and acceleration of the slider in the slot for the instant when =60. Also, find the radial components of the slider's velocity and acceleration.
Please solve the problem by using x - y , n - t ,

Step by Step Solution

There are 3 Steps involved in it
