Question: please solve the problem shown in the picture Problem 1 Consider a simple truss consisting of three pin - ended bars connected to a common

please solve the problem shown in the picture Problem 1

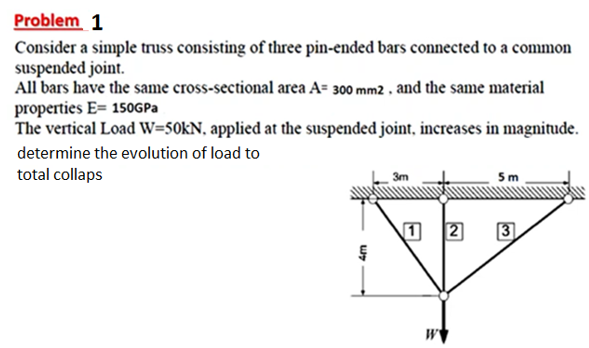

Consider a simple truss consisting of three pin-ended bars connected to a common suspended joint.
All bars have the same cross-sectional area \( A=300\mathrm{mm2}\), and the same material properties \(\mathrm{E}=1506\mathrm{~Pa}\)
The vertical Load \( W=50\mathrm{kN}\), applied at the suspended joint, increases in magnitude. determine the evolution of load to total collaps
