Please solve these and type them on your computer, If for some questions you can't draw with your computer, just explain in words what your drawing would look like.

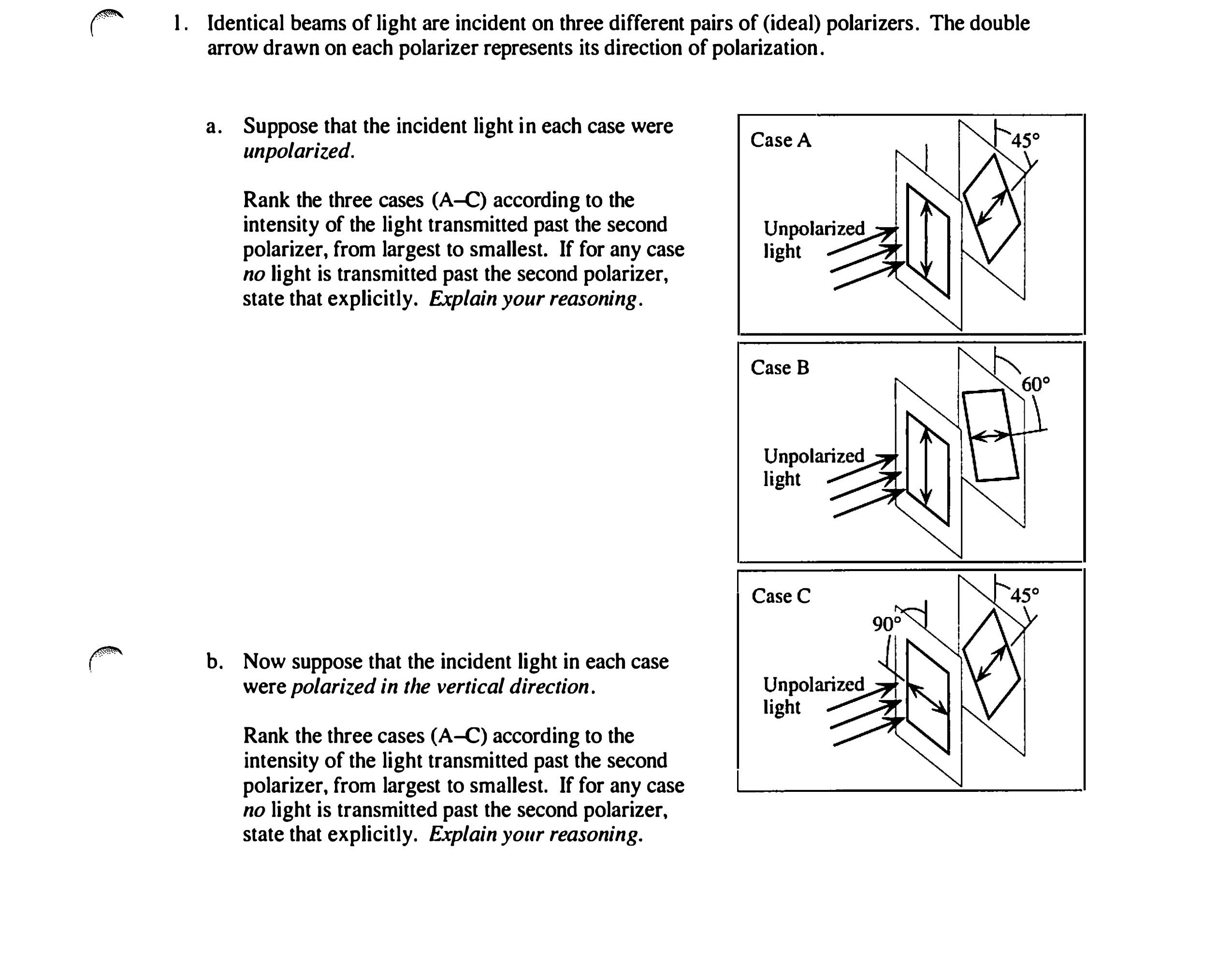

{"M l. Identical beams of light are incident on three different pairs of (ideal) polarizers. The double arrow drawn on each polarizer represents its direction of polarization. Case A Unpolarized light Case B Unpolan'zed light a. Suppose that the incident light in each case were unpolarized. Rank the three cases (A-C) according to the intensity of the light transmitted past the second polarizer, from largest to smallest. If for any case no light is transmitted past the second polarizer, state that explicitly. Explain your reasoning. l b. Now suppose that the incident light in each case were polarized in the vertical direction. Rank the three cases (AC) according to the intensity of the light transmitted past the second polarizer. from largest to smallest. If for any case no light is transmitted past the second polarizer. state that explicitly. Explain your reasoning. 2. Unpolarized light of intensity la is incident on a pair of (ideal) polarizers, as shown below. The direction of polarization of the rst polarizer is vertical. The second polarizer has unknown orientation. For each pan below, determine whether Unpolarized it is possible for the light that reaches the light of observer to have the given value of intensity I,J mtensrty. _9 > If so: Determine the direction of ) polarization of the second polarizer. Show all work. If not: Explain why not. a. No light reaches the observer. b. Light of intensity 210/3 reaches the observer. c. Light of intensity 10/2 reaches the observer. d. Light of intensity 10/4 reaches the observer
