Question: Please solve this problem entirly and show your work. Also box the answers.A rectangular beam carries uniformly distributed service ( unfactored ) dead load of

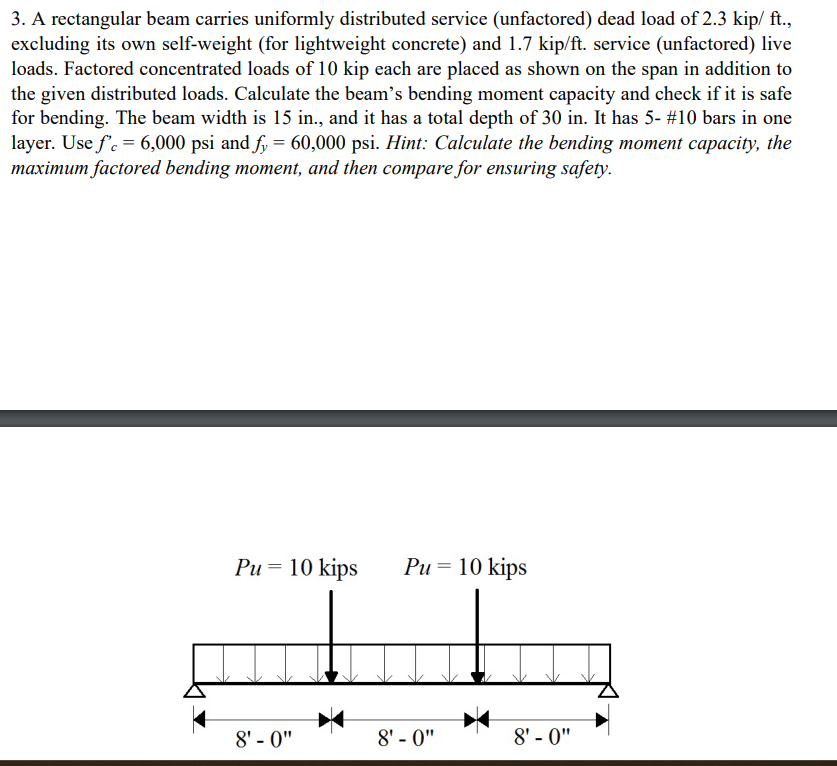

Please solve this problem entirly and show your work. Also box the answers.A rectangular beam carries uniformly distributed service (unfactored) dead load of 2.3kipft.,
excluding its own self-weight (for lightweight concrete) and 1.7kipft. service (unfactored) live
loads. Factored concentrated loads of 10 kip each are placed as shown on the span in addition to
the given distributed loads. Calculate the beam's bending moment capacity and check if it is safe
for bending. The beam width is 15in., and it has a total depth of 30in. It has 5- #10 bars in one
layer. Use f'?'=6,000 and fy=60,000. Hint: Calculate the bending moment capacity, the
maximum factored bending moment, and then compare for ensuring safety.
Please solve this problem entirly and show your
