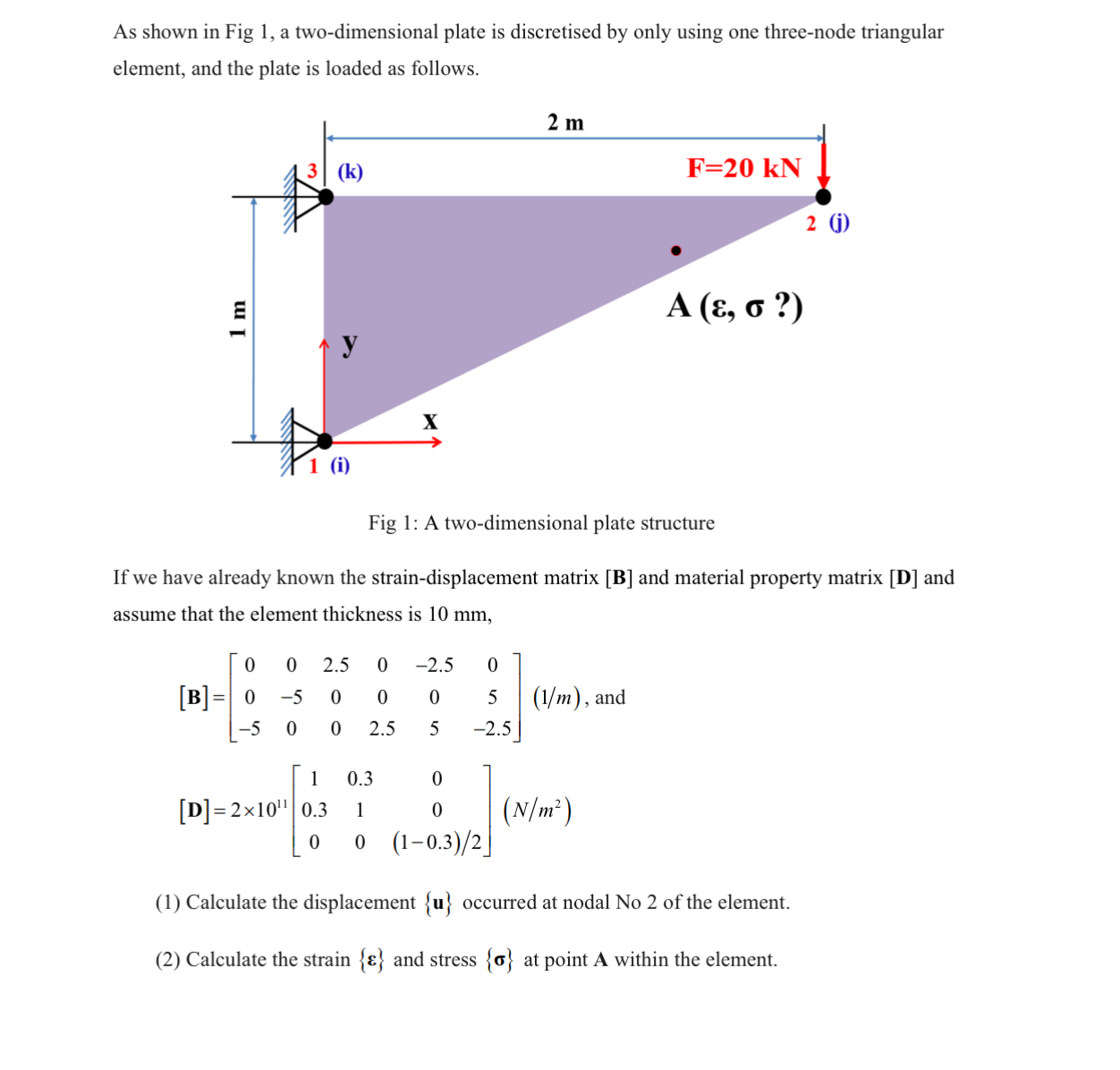

As shown in Fig 1, a two-dimensional plate is discretised by only using one three-node triangular element, and the plate is loaded as follows.
Fig 1: A two-dimensional plate structure
If we have already known the strain-displacement matrix B and material property matrix D and assume that the element thickness is 10mm,
[B]=[002.50-2.50-50005002.55-2.5]
-5
-5
0(1m), and
[D]=21011[10.301001-0.32]
0
0.3(Nm2)
(1) Calculate the displacement {u} occurred at nodal No 2 of the element.
(2) Calculate the strain {} and stress {} at point A within the element.
