Question: Plot AFD, SFD , and BMD accordingly. ( 1 0 pts ) Are the two moments at joint B equal? ( 3 pts ) Are

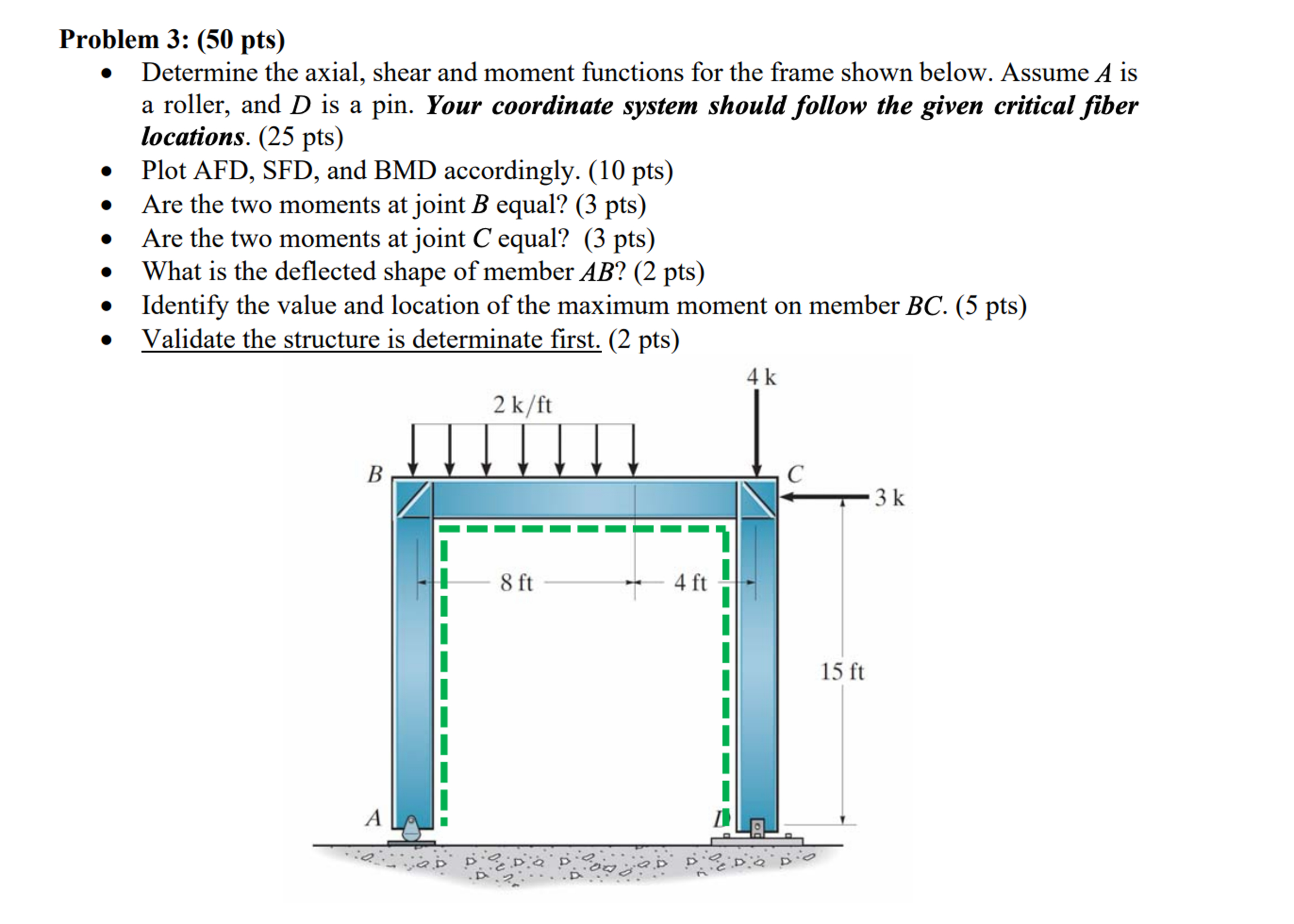

Plot AFD, SFD, and BMD accordingly. (10 pts)
Are the two moments at joint B equal? (3 pts)
Are the two moments at joint C equal?(3 pts )
What is the deflected shape of member AB ?(2 pts) Identify the value and location of the maximum moment on member BC.(5 pts )
Validate the structure is determinate first. (2 pts)
Plot AFD, SFD , and BMD accordingly. ( 1 0 pts )

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Civil Engineering Questions!

Q:

Problem 3 : ( 5 0 pts ) - Determine the axial, shear and moment functions for the frame shown below. Assume \ ( A \ ) is a roller, and \ ( D \ ) is a pin. Your coordinate system should follow the...
