Plot outputs vs Inputs and find calibration equations and standard errors for the bourdon gage and the compression load cell You need to have calibration equations for loading, unloading and average data Discuss the sensitivity of the equipment to the direction of the loading and how that affects the calibration coefficients What are the effects of equipment uncertainty on the calibration coefficients Write a technical report (lab report as per lab format) according to the instructions provided Discuss the accuracy and limit of your result Transducer accuracy to 0 01 Loading Unloading lbs unit lbs unit 5 0 0 1 4 2 3 22 19 17 75 13 36 8 92 4 44 0 3 4 44 8 92 13 36 17 75 22 19 3 4 2 4 1 0 5 Bourdon Gauge accuracy to 50 Loading Unloading PSI unit PSI unit 100 100 500 300 500 700 1200 1700 950 1400 2400 3400 1700 1200 700 500 300 100 3400 2400 1400 950 500 100 Transducer accuracy to 0 01 Loading Unloading lbs unit lbs unit 5 0 0 1 4 2 3 22 19 17 75 13 36 8 92 4 44 0 3 4 44 8 92 13 36 17 75 22 19 3 4 2 4 1 0 5 Bourdon Gauge accuracy to 50 Loading Unloading PSI unit PSI unit 100 100 500 300 500 700 1200 1700 950 1400 2400 3400 1700 1200 700 500 300 100 3400 2400 1400 950 500 100

The Answer is in the image, click to view ...

Question: Plot outputs vs. Inputs and find calibration equations and standard errors for the bourdon gage and the compression load cell. You need to have calibration

Plot outputs vs. Inputs and find calibration equations and standard errors for the bourdon gage and the compression load cell. You need to have calibration equations for loading, unloading and average data. Discuss the sensitivity of the equipment to the direction of the loading and how that affects the calibration coefficients. What are the effects of equipment uncertainty on the calibration coefficients? Write a technical report (lab report as per lab format) according to the instructions provided. Discuss the accuracy and limit of your result Plot outputs vs. Inputs and find calibration equations and standard errors for

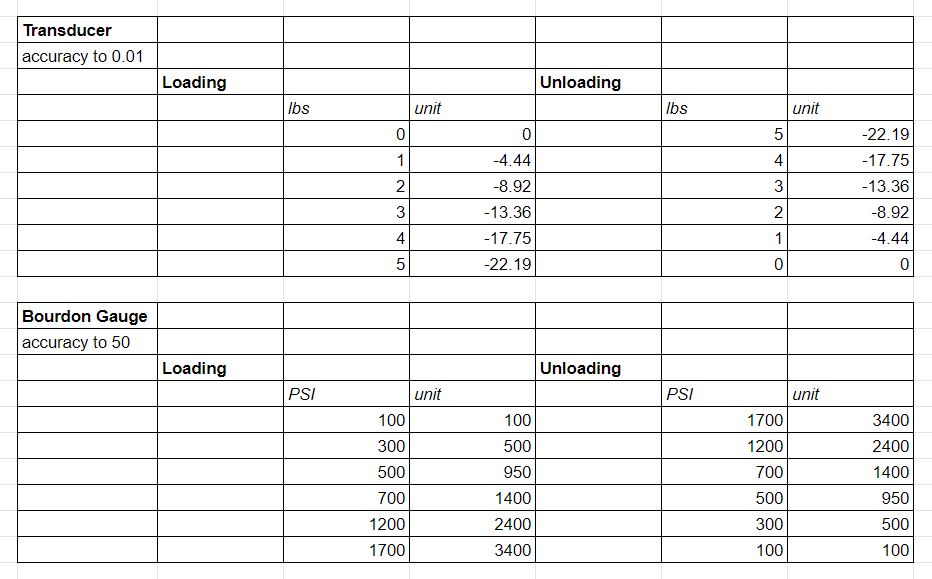

Transducer accuracy to 0.01 Loading Unloading lbs unit lbs unit 5 0 0 1 4 2 3 -22.19 -17.75 -13.36 -8.92 -4.44 0 3 -4.44 -8.92 -13.36 -17.75 -22.19 3 4 2 4 1 0 5 Bourdon Gauge accuracy to 50 Loading Unloading PSI unit PSI unit 100 100 500 300 500 700 1200 1700 950 1400 2400 3400 1700 1200 700 500 300 100 3400 2400 1400 950 500 100 Transducer accuracy to 0.01 Loading Unloading lbs unit lbs unit 5 0 0 1 4 2 3 -22.19 -17.75 -13.36 -8.92 -4.44 0 3 -4.44 -8.92 -13.36 -17.75 -22.19 3 4 2 4 1 0 5 Bourdon Gauge accuracy to 50 Loading Unloading PSI unit PSI unit 100 100 500 300 500 700 1200 1700 950 1400 2400 3400 1700 1200 700 500 300 100 3400 2400 1400 950 500 100
