Question: pls do asap (b) A 3-bus power system is shown in Figure Q.1(b). Data for the system in per unit are based on common base

 pls do asap (b) A 3-bus power system is shown in

pls do asap

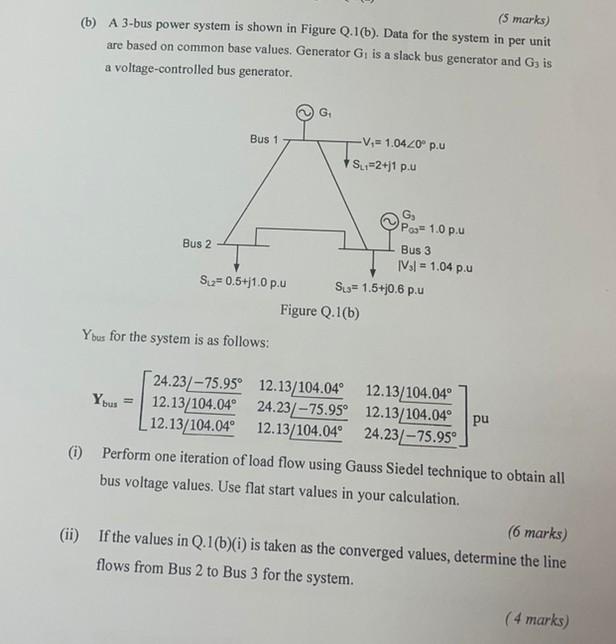

(b) A 3-bus power system is shown in Figure Q.1(b). Data for the system in per unit are based on common base values. Generator G1 is a slack bus generator and G3 is a voltage-controlled bus generator. Ybus for the system is as follows: Ybus=24.23/75.9512.13/104.0412.13/104.0412.13/104.0424.23/75.9512.13/104.0412.13/104.0412.13/104.0424.23/75.95pu (i) Perform one iteration of load flow using Gauss Siedel technique to obtain all bus voltage values. Use flat start values in your calculation. (ii) If the values in Q.1(b)(i) is taken as the converged values, determine the line flows from Bus 2 to Bus 3 for the system
