plz solve this with Kinematics must be done using the component method

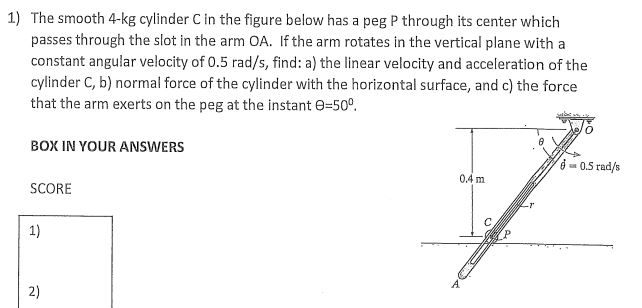

1) The smooth \(4-\mathrm{kg}\) cylinder C in the figure below has a peg P through its center which passes through the slot in the arm OA. If the arm rotates in the vertical plane with a constant angular velocity of \(0.5\mathrm{rad}/\mathrm{s}\), find: a) the linear velocity and acceleration of the cylinder C, b) normal force of the cylinder with the horizontal surface, and c) the force that the arm exerts on the peg at the instant \(\theta=50^{\circ}\).
BOX IN YOUR ANSWERS
SCORE
1)
2)
plz solve this with Kinematics must be done using
