Question: Portal frmae ( 2 ) A load 4 6 . 6 k N is applied onto the frame shown below. Use the portal method to

Portal frmae (2)

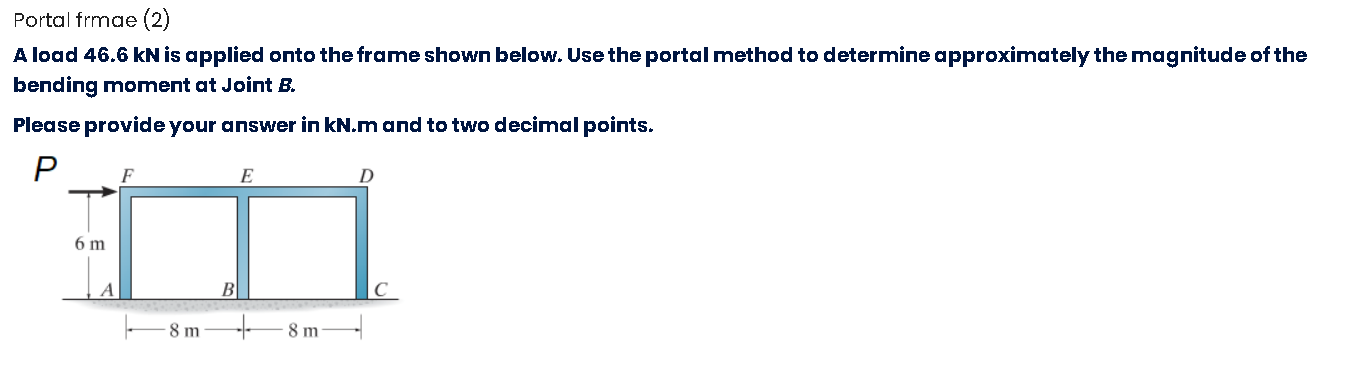

A load 46.6kN is applied onto the frame shown below. Use the portal method to determine approximately the magnitude of the
bending moment at Joint B.
Please provide your answer in kN.m and to two decimal points.
