PR $7-3($LO $7-5,7-6,7-7)$ Beach Rentals $($BR$)$ maintains an inventory of rental houses near universities and leases those houses primarily to student renters. UML Class Diagram Assessment Tool iframe: Select from the following options for the missing information in the UML class diagram above.

Required:

Prepare a UML class diagram with classes, associations, and multiplicities.

$\backslash$table$[[$Diagram Location,Class Name or Multiplicity$],[$A$.,$Houses,grad$],[$B$.,$Alo Lhanhand,$],[$C$.,,],[$D$.,\backslash$table$[[$Cash Receipts$],[$Houses$],[$Neighborhoods$],[$Renters$]],],[1.,],[2.,],[3.,],[4.,],[5.,0..*,],[6.,1\mathrm{.}1,],[7.,0..*,],[8.,1\mathrm{.}1,],[9.,0..*,],[10.,1\mathrm{.}1,],[11.,0..*,],[12.,0..*,]]$ PR $7-3$ Part $1$: Select from the following options for the missing information in the UML class diagram above.

Required:

Prepare a UML class diagram with classes, associations, and multiplicities.

$\begin{array}{cc}\text{D}\text{i}\text{a}\text{g}\text{r}\text{a}\text{m}\text{L}\text{o}\text{c}\text{a}\text{t}\text{i}\text{o}\text{n}& \text{C}\text{l}\text{a}\text{s}\text{s}\text{N}\text{a}\text{m}\text{e}or\text{M}\text{u}\text{l}\text{t}\text{i}\text{p}\text{l}\text{i}\text{c}\text{i}\text{t}\text{y}\\ A.& \text{H}\text{o}\text{u}\text{s}\text{e}\text{s}\\ B.& \text{N}\text{e}\text{i}\text{g}\text{h}\text{b}\text{o}\text{r}\text{h}\text{o}\text{o}\text{d}\text{s}\\ C.& \text{R}\text{e}\text{n}\text{t}\text{e}\text{r}\text{s}\\ D.& \text{H}\text{o}\text{u}\text{s}\text{e}\text{s}\\ 1.& 1.\mathrm{.}1\\ 2.& ?\\ 3.& 0.{?}^{*}\\ 4.& 1.{?}^{*}\\ 5.& 1.\mathrm{.}1\\ 6.& 1.\mathrm{.}1\\ 7.& 0.{?}^{*}\\ 8.& 1.\mathrm{.}1\\ 10.& 0.{?}^{*}\\ 11.& 0.{?}^{*}\end{array}$

Skip to question

$[$The following information applies to the questions displayed below.$]$

Beach Rentals $($BR$)$ maintains an inventory of rental houses near universities and leases those houses primarily to student renters. This case describes their rental business process. BR agents$$former marketing majors renowned for their fast$-$talking and flamboyant lifestyles$$work with potential renters and sign the rental contracts for BR$.$

BR tracks its houses by city, neighborhood, and distance from campus. BR assigns one specific BR agent to each neighborhood to manage rentals for all houses in that neighborhood, but each BR agent may be assigned to multiple neighborhoods. BR cashiers collect the rent and are bonded for security purposes. Because cashiers never become agents $($or vice versa$),$ BR tracks BR cashiers separately from BR agents, although both are identified by employee numbers.

BR sets rental rates to its student customers by considering such matters as number of bedrooms and age of the house. Additionally, BR applies a monthly rental surcharge to each house that depends solely upon its neighborhood designation; for example, upscale neighborhoods have higher surcharges and less desirable neighborhoods have lower surcharges. The same surcharge applies for the life of the lease. Every house has a rental surcharge, and all houses in a particular neighborhood have the same surcharge.

Prospective renters contact BR to inquire about renting a house. When a potential renter contacts BR$,$ a BR agent is assigned to assist them. That BR agent remains the person$$s point of contact for as long as they continue to deal with Beach Rentals. BR records information on each potential renter as soon as they contact BR to inquire about a house.

BR agents negotiate the rental contracts with the students. Each rental contract must last at least $6$ months, and $12-$month contracts get a $5$ percent discount. BR also charges a damage fee that is due along with the first month$$s rent when the rental contract is signed. The BR agent earns a $10$ percent commission on each rental contract, and BR tracks the year$-$to$-$date $($YTD$)$ commission earned for each of the BR agents. Of course, the BR agents compete with one another to see who earns the highest commissions, and BR fosters the competition by giving an annual award to its $$best$$ agent.

When multiple students want to rent one house, BR requires that they designate the primary renter$$the one who will be responsible for paying the rent. However, BR also gathers information about all the other occupants of the house and designates them as secondary renters. All the renters sign the rental contract, and BR assigns a unique renter number to each occupant. The students may not change primary renter for the term of a contract. BR cashiers collect the rental payments monthly from the primary renters. BR records information concerning employees, house owners, bank accounts, cities, and neighborhoods in the database before the renters are involved in any events. Each neighborhood is located in only one city, and houses are in only one neighborhood.

Attributes:

Agent employee#

Agent name

Agent real estate license status

Bank account#

Bank account balance

Bank name and address

Cash receipt $ amount

Cash receipt#

Cashier employee#

Cashier name

City name

Damage fee

House street address

House zip code

Monthly rent

Neighborhood name

Number of bedrooms

Number of houses in this city

Rent discount for $12-$month contract

Rental contract#

Rental contract begin date

Rental contract duration in months

Rental surcharge amount

Renter bank and routing numbers

Renter name

Renter number#

YTD rental commissions

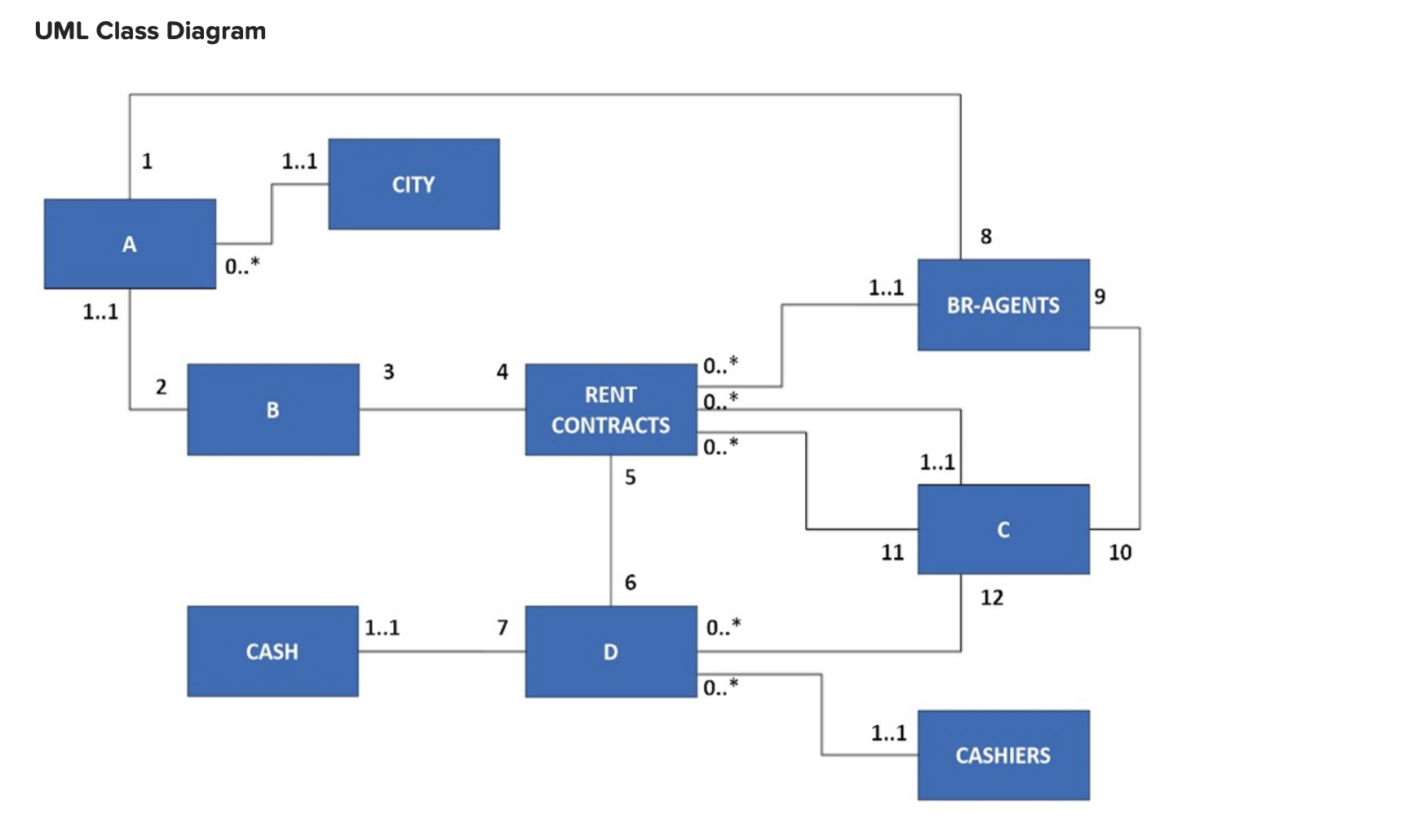

UML Class Diagram
