PR $8-2($LO $8-2,8-3,8-5)$ The following narrative describes the purchase and payment process for Quick Jet Incorporated. PR $8-2$ Part c: Use the information in the case above to prepare a UML class diagram with classes,

associations, and multiplicities.

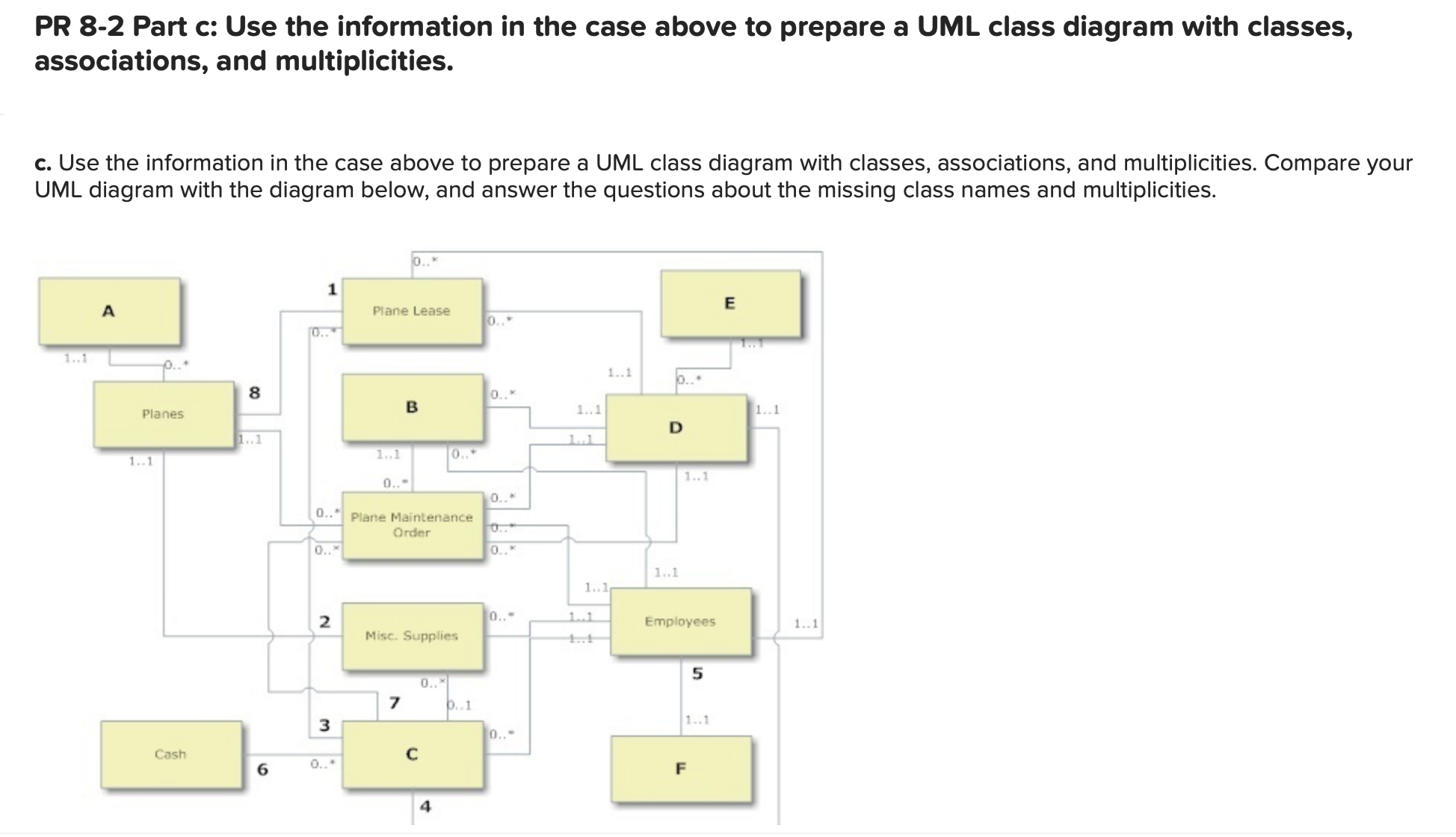

c$.$ Use the information in the case above to prepare a UML class diagram with classes, associations, and multiplicities. Compare your

UML diagram with the diagram below, and answer the questions about the missing class names and multiplicities. Assessment Tool iFrame

IVIISC. suppies $=$ miscellaneous supplies

$\backslash$table$[[$Questions$,$Answers$],[$What is the best class name to replace the letter A in the diagram above?,Plane Types,grad$],[$What is the best class name to replace the letter B in the diagram above?,Aloun.$],[$What is the best class name to replace the letter C in the diagram above?,$\{$

$\backslash$table$[[$Cash Disbursements$],[$Plane Maintenance Contracts$],[$Plane Types$],[$Vendor Types$],[$None of these$]]\}],[$What is the best class name to replace the letter D in the diagram above?$],[$What is the best class name to replace the letter E in the diagram above?$],[$What is the best class name to replace the letter F in the diagram above?$],[$What is the best multiplicities to replace the number $1$ in the diagram above?$],[$What is the best multiplicities to replace the number $2$ in the diagram above?$],[$What is the best multiplicities to replace the number $3$ in the diagram above?,$0..*],[$What is the best multiplicities to replace the number $4$ in the diagram above?,$1\mathrm{.}1],[$What is the best multiplicities to replace the number $5$ in the diagram above?,$1.\mathrm{.}1],[$What is the best multiplicities to replace the number $6$ in the diagram above?,$1.\mathrm{.}1],[$What is the best multiplicities to replace the number $7$ in the diagram above?,$0.^(*)],[$What is the best multiplicities to replace the number $8$ in the diagram above?,$1.\mathrm{.}1]]$ Misc. Supplies $=$ miscellaneous supplies

Skip to question

$[$The following information applies to the questions displayed below.$]$

The following narrative describes the purchase and payment process for Quick Jet Incorporated. Use the narrative to answer the questions below. Quick Jet Incorporated provides air taxi service to the wealthy, including celebrities, sports stars, and business executives. Quick Jet employees negotiate long$-$term leases with airplane leasing companies. Each lease involves one plane. Quick Jet categorizes its planes according to passenger capacity and normal flying range. Quick Jet makes monthly lease payments for its planes. If it leases multiple planes from the same lease company, it combines payments.

Maintenance. The company has no maintenance staff of its own, so it also contracts with a number of airplane maintenance companies to perform the routine maintenance required to keep its fleet airworthy. It issues orders against the contracts for specific maintenance required for the planes. To comply with FAA regulations, it tracks the details of the specific maintenance performed on each plane. To facilitate the tracking, each maintenance order specifies the maintenance services for one plane. Quick Jet pays for all the maintenance performed by each maintenance contractor within $15$ days, according to the terms of the contracts, and may combine payments.

Miscellaneous Purchases. Quick Jet also provides each of its pilots with credit cards so they can purchase fuel and miscellaneous supplies at the various airports they use. The pilots turn in detailed lists of their purchases that identify the supplier, the date, the amount purchased, and the prices, as well as the plane for which the items were purchased. Each list is assigned a miscellaneous purchase number. Quick Jet pays the credit card bills in full each month upon receipt from the credit card company.
