Question: Prelab 7: Using the magnitudes and directions for each vector below, graphically show or draw the equilibrant of the two given vectors on the protractor

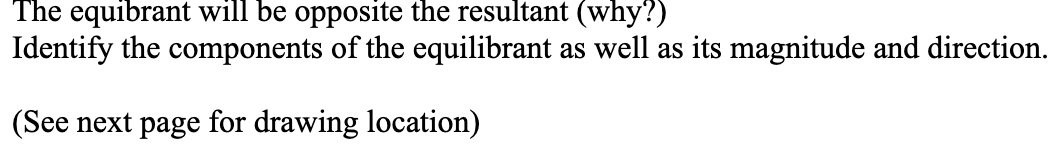

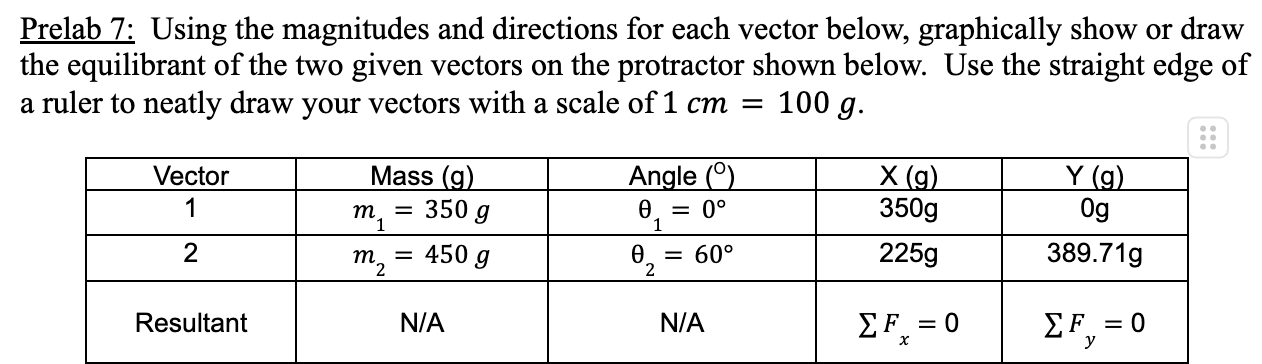

Prelab 7: Using the magnitudes and directions for each vector below, graphically show or draw the equilibrant of the two given vectors on the protractor shown below. Use the straight edge of a ruler to neatly draw your vectors with a scale of 1 cm = 100 g. m The equibrant will be opposite the resultant (Why?) Identify the components of the equilibrant as well as its magnitude and direction. (See next page for drawing location)
