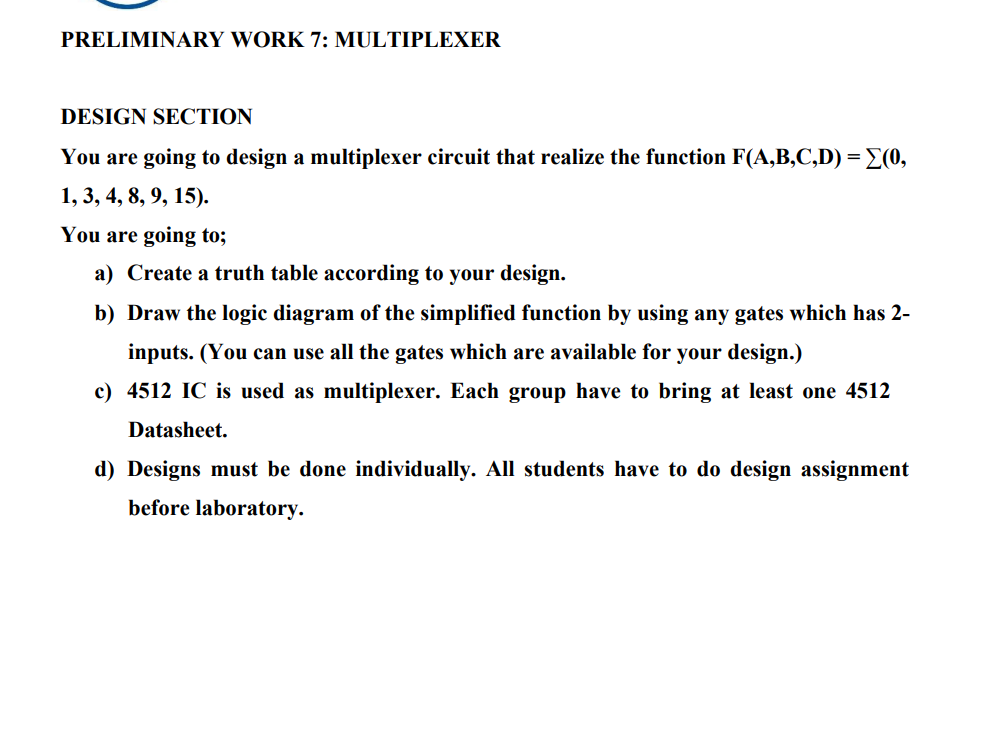

PRELIMINARY WORK $7$: MULTIPLEXER

DESIGN SECTION

You are going to design a multiplexer circuit that realize the function $\backslash ($ F$($A$,$ B$,$ C$,$ D$)=\backslash$sum$(0\backslash ),\backslash (1,3,4,8,9,15)\backslash ).$

You are going to;

a$)$ Create a truth table according to your design.

b$)$ Draw the logic diagram of the simplified function by using any gates which has $2$inputs. $($You can use all the gates which are available for your design.$)$

c$)4512$ IC is used as multiplexer. Each group have to bring at least one $4512$ Datasheet.

d$)$ Designs must be done individually. All students have to do design assignment before laboratory.
