Question: Prepare a set of profile leveling notes for the data listed. All data is given in feet. The elevation of BMA is 6 5 9

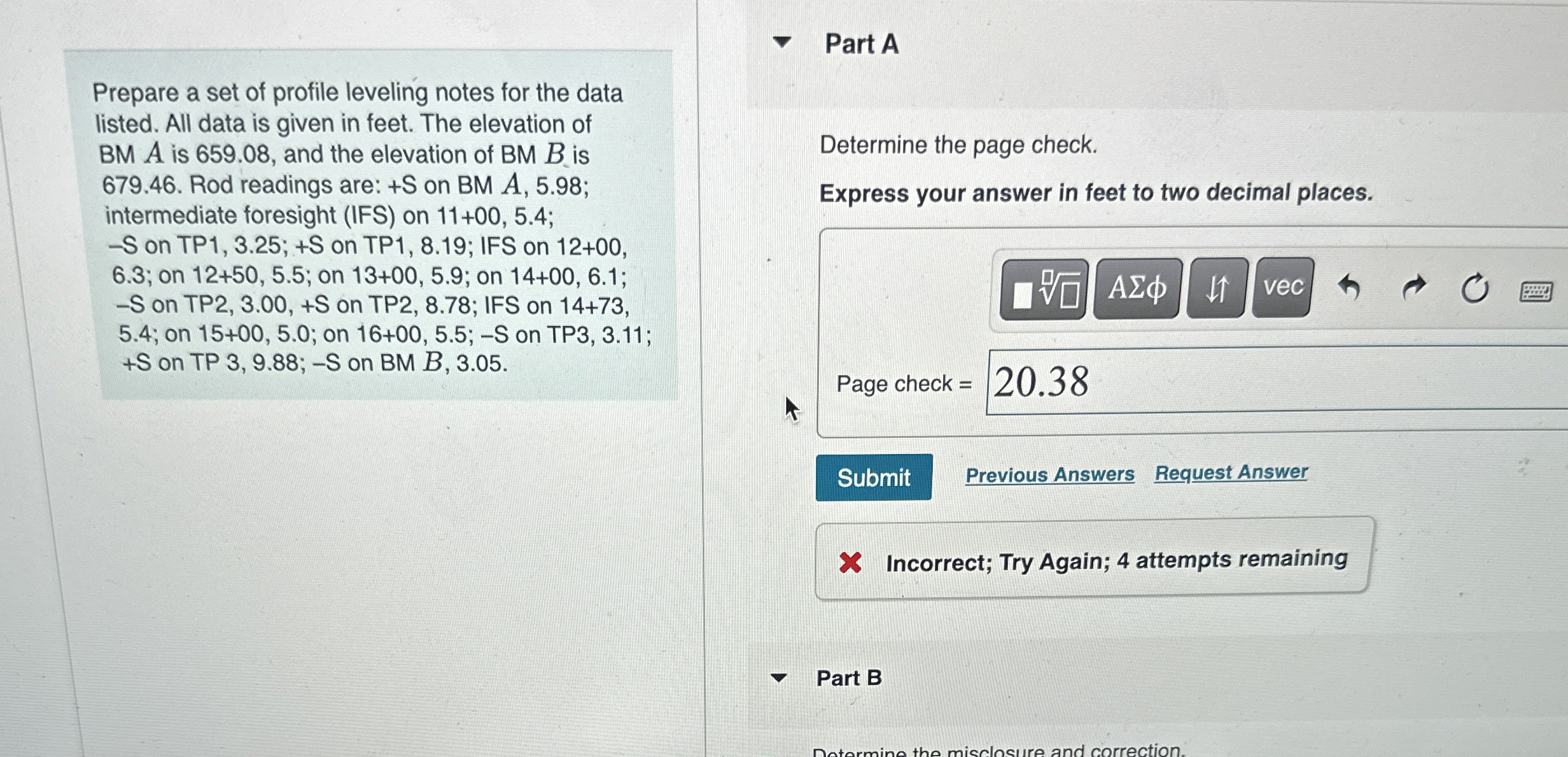

Prepare a set of profile leveling notes for the data
listed. All data is given in feet. The elevation of
BMA is 659.08, and the elevation of BMB is
679.46. Rod readings are: +S on BM A,5.98;
intermediate foresight (IFS) on 11+00,5.4;
-S on TP1,3.25; +S on TP1,8.19; IFS on 12+00,
6.3 ; on 12+50,5.5; on 13+00,5.9; on 14+00,6.1;
-S on TP2,3.00,+S on TP2,8.78; IFS on 14+73,
5.4 ; on 15+00,5.0; on 16+00,5.5; -S on TP3,3.11;
+S on TP 3,9.88; -S on BM B,3.05.
Part A
Determine the page check.
Express your answer in feet to two decimal places.
Page check =
Incorrect; Try Again; 4 attempts remaining
Part B
Prepare a set of profile leveling notes for the
