Question: ( Prob . 2 - 2 0 ) Determine the horizontal and vertical components of reaction at the pins A and C . ( 2

(Prob.2-20) Determine the horizontal and vertical components of reaction at the pins A and C.(20%)

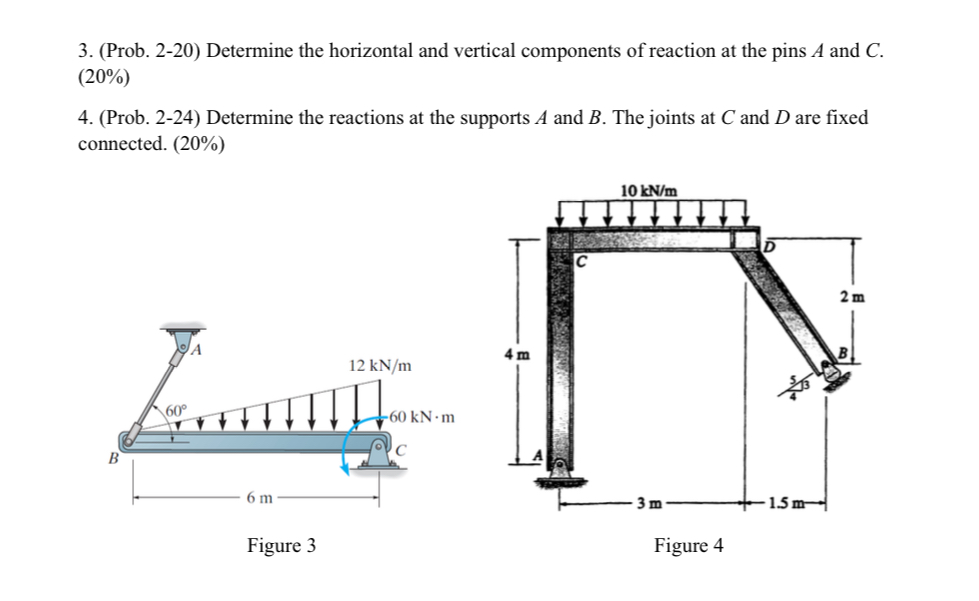

(Prob.2-24) Determine the reactions at the supports A and B. The joints at C and D are fixed connected. (20%)
Figure 3
Figure 4
( Prob . 2 - 2 0 ) Determine the horizontal and

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
