Question: Prob. 6 - 1 6 . Using given loads, determine the max force in cable AC , the max vertical reaction at B , the

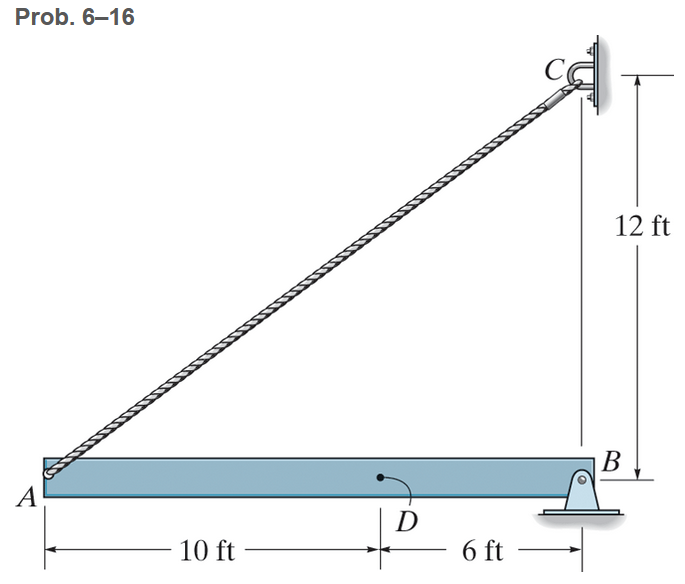

Prob. 6-16. Using given loads, determine the max force in cable AC, the max vertical reaction at B, the max positive moment at D, and the max absolute shear at D. a. Distributed DL, wd=375 lb per foot. b. distributed LL, wl=175 lb per foot. c. point load, live, pl=2000lb
Prob. 6 - 1 6 . Using given loads, determine the

Step by Step Solution

There are 3 Steps involved in it
