Question: Prob 6 . The beam shown below is made by attaching a C - channel on top of an I - beam. The beam has

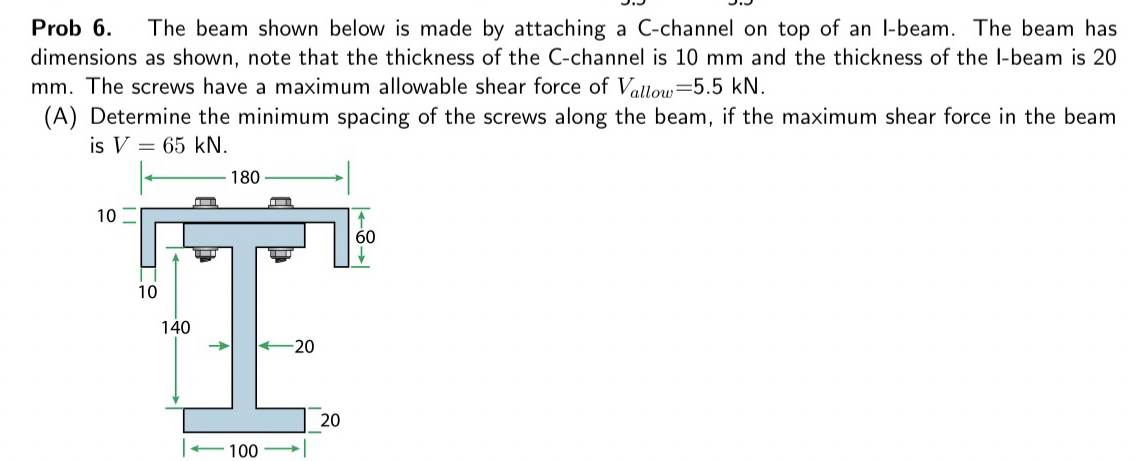

Prob 6. The beam shown below is made by attaching a C-channel on top of an I-beam. The beam has
dimensions as shown, note that the thickness of the C-channel is 10 mm and the thickness of the l-beam is 20
mm . The screws have a maximum allowable shear force of Vallow=5.5kN.
(A) Determine the minimum spacing of the screws along the beam, if the maximum shear force in the beam
is V=65kN
