Question: Prob. 7 : The rectangular platform is hinged at A and B and is supported by a cable that passes over a frictionless hook at

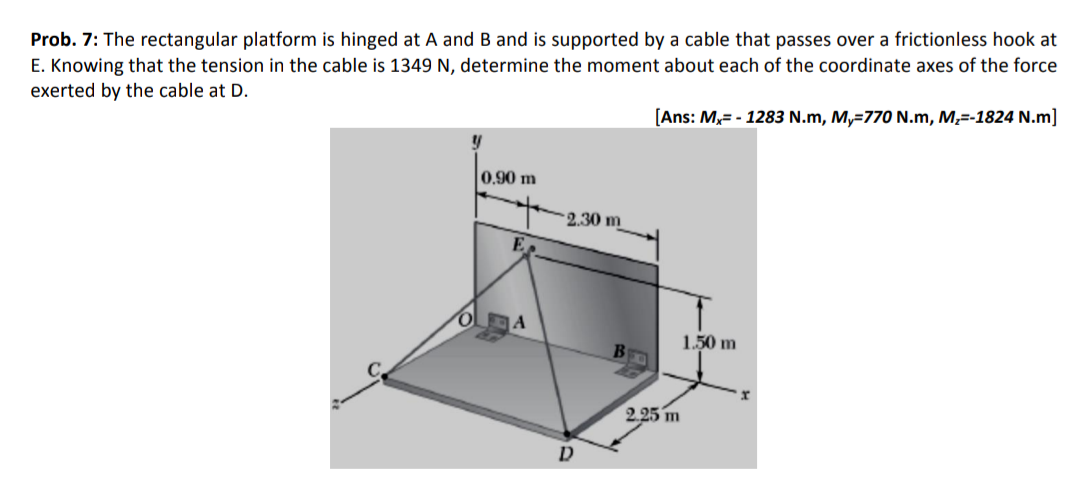

Prob. 7: The rectangular platform is hinged at A and B and is supported by a cable that passes over a frictionless hook at E. Knowing that the tension in the cable is 1349 N , determine the moment about each of the coordinate axes of the force exerted by the cable at D.
[Ans: Mx=-1283 N.m,My=770 N.m,Mz=-1824 N.m]
Prob. 7 : The rectangular platform is hinged at A

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Q:

The rectangular platform is hinged at A and B and is supported by a cable that passes over a frictionless hook at E. Knowing that the tension in the cable is 1349 N, a) Determine the moment component...

Q:

Th rectangular platform is hinged at A and B and is supported by a cable that passes over a frictionless hook at E. Knowing that the tension in the cable is 1349 N, determine the moment about each of...

Q:

The rectangular platform is hinged at A and B and is supported by a cable that passes over a frictionless hook at E. Knowing that the tension in the cable is 1349 N, determine the moment about each...

Q:

The rectangular platform is hinged at A and B and is supported by a cable that passes over a frictionless hook at E. Knowing that the tension in the cable is 1349 N, determine the moment about each...

Q:

Solve Problem 4.117, assuming that cable DCE is replaced by a cable attached to Point E and hook C. PROBLEM 4.117 A 100-kg uniform rectangular plate is supported in the position shown by hinges A and...

Q:

Solve Problem 4.126 assuming that cable DCE is replaced by a cable attached to point E and hook C. P4.126 A 285-lb uniform rectangular plate is supported in the position shown by hinges A and B and...

Q:

Required information Problem 04.117 - Rectangular plate - DEPENDENT MULTI-PART PROBLEM - ASSIGN ALL PARTS NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to...

Q:

In Prob. 3.54, determine the perpendicular distance between portion BG of the cable and the diagonal AD. Problem 3.54: The frame ACD is hinged at A and D and is supported by a cable that passes...

Q:

In Prob. 3.53, determine the perpendicular distance between portion BH of the cable and the diagonal AD. Problem 3.53: The frame ACD is hinged at A and D and is supported by a cable that passes...

Q:

17 A 100-kg uniform rectangular plate is supported in the position shown by hinges A and B and by cable DCE that passes over a frictionless hook at C. Assuming that the tension is the same in both...
