Question: ( Prob 9 - 2 1 ) Determine the reactions at the fixed support A and rocker C , and also determine the horizontal displacement

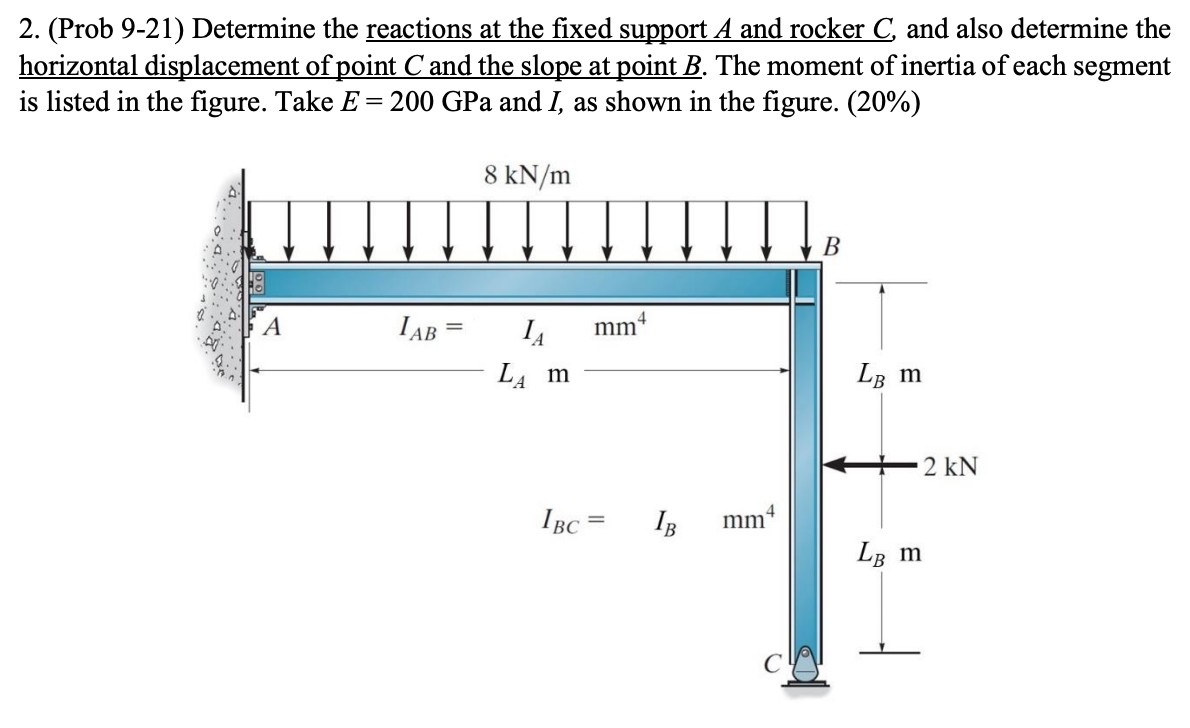

(Prob 9-21) Determine the reactions at the fixed support A and rocker C, and also determine the
horizontal displacement of point C and the slope at point B. The moment of inertia of each segment
is listed in the figure. Take E=200GPa and I, as shown in the figure. Length A =5 m
Length B =7 m
I A =1116(10^6) mm
I B =2075(10^6) mm(20%)
( Prob 9 - 2 1 ) Determine the reactions at the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
