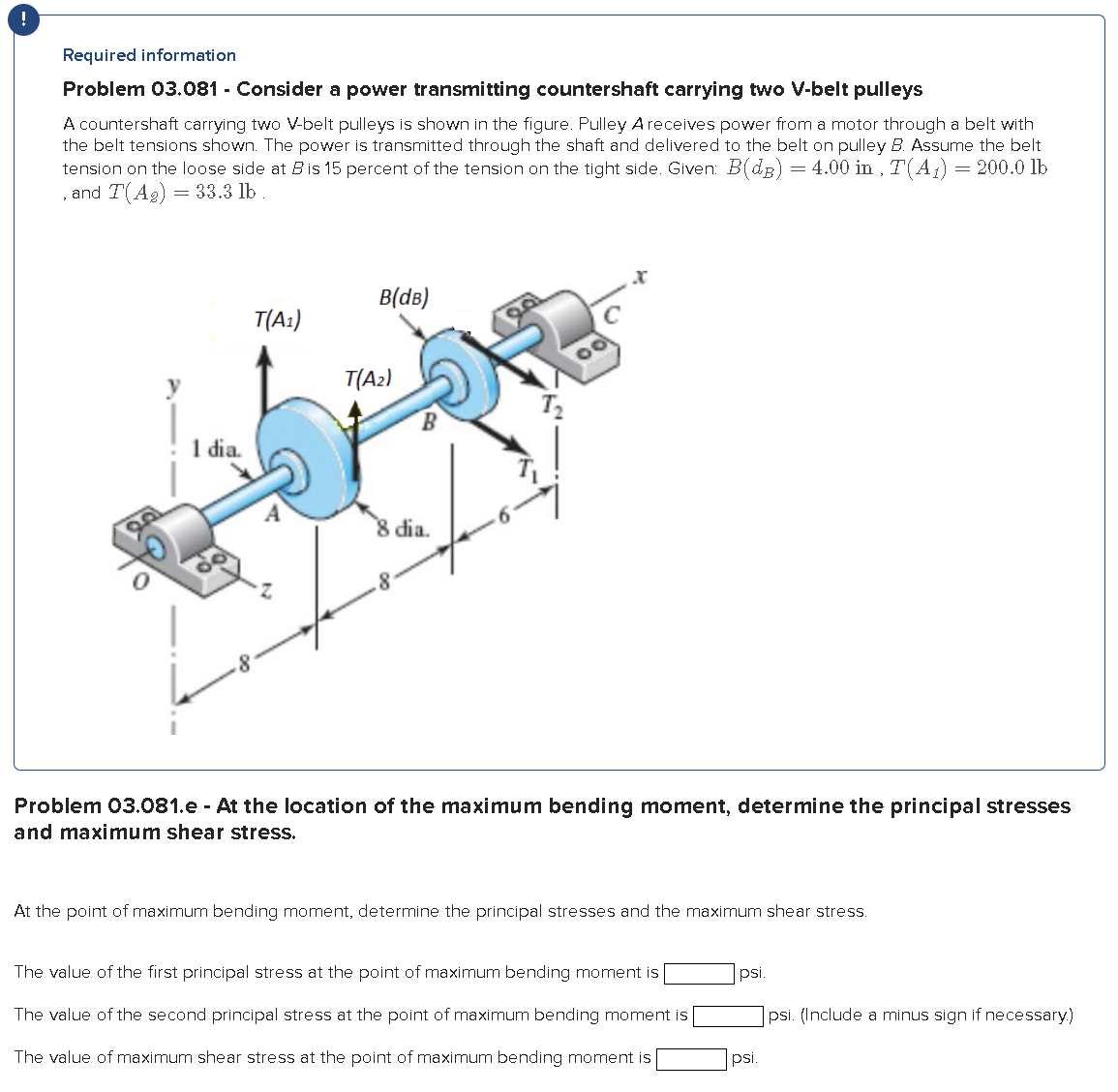

Question: Problem 0 3 . 0 8 1 . e - At the location of the maximum bending moment, determine the principal stresses and maximum shear

Problem 03.081.e - At the location of the maximum bending moment, determine the principal stresses
and maximum shear stress.
At the point of maximum bending moment, determine the principal stresses and the maximum shear stress.
The value of the first principal stress at the point of maximum bending moment is
psi.
The value of the second principal stress at the point of maximum bending moment is
psi. (Include a minus sign if necessary.)
The value of maximum shear stress at the point of maximum bending moment is
psi.
Problem 0 3 . 0 8 1 . e - At the location of the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
