Question: Problem 0 3 3 - 2 1 . Determine the force in members ( F G , G D , C D )

Problem 03

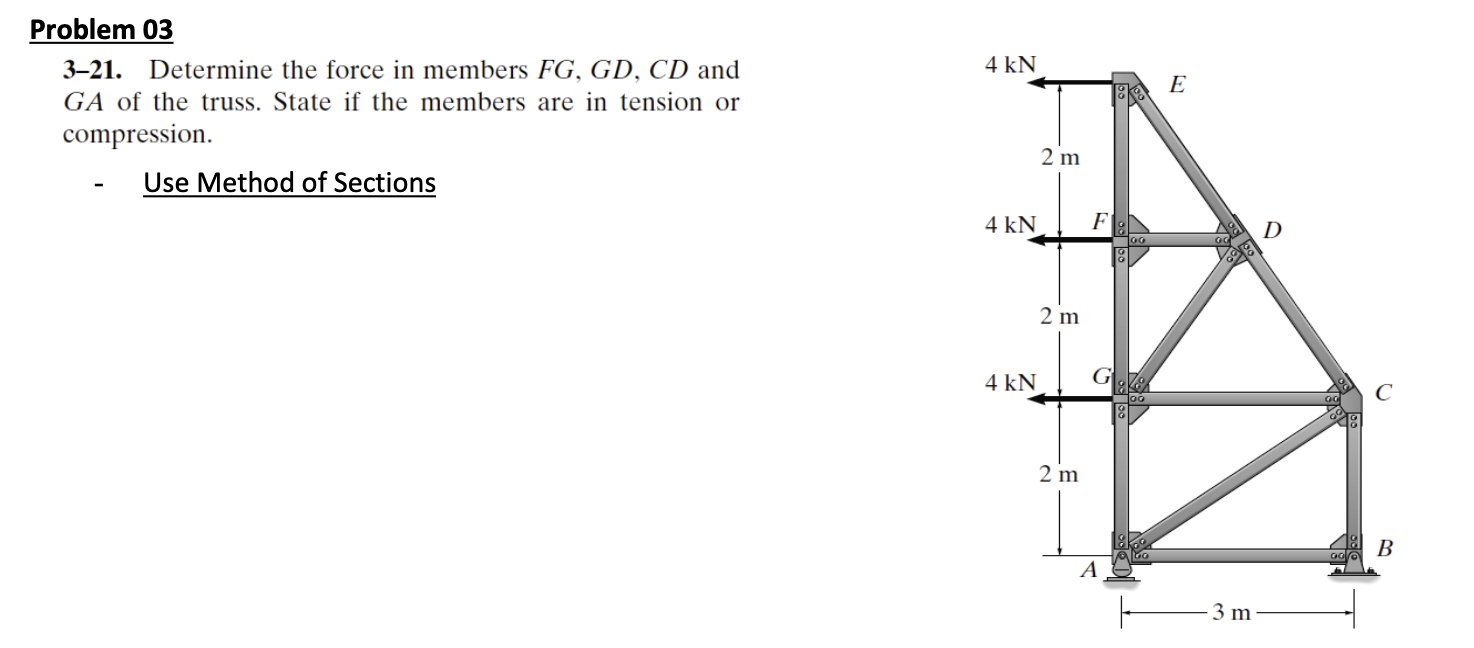

3-21. Determine the force in members \( F G, G D, C D \) and \( G A \) of the truss. State if the members are in tension or compression.
- Use Method of Sections
Problem 0 3 3 - 2 1 . Determine the force in

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
