Question: Problem 0 4 . 1 1 0 - Boom support tension A 7 - ft boom is held by a ball and socket at A

Problem 04.110- Boom support tension

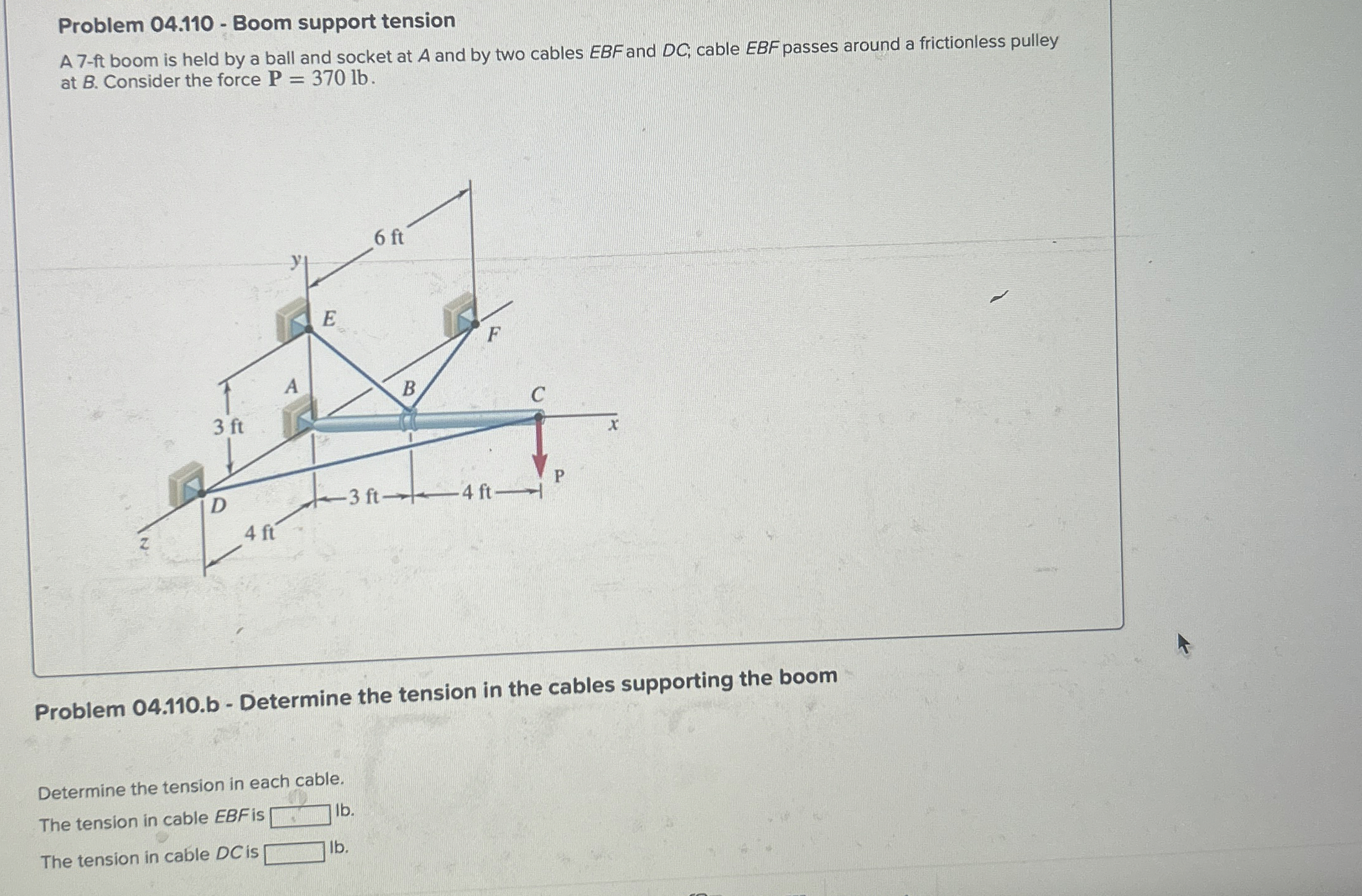

A 7-ft boom is held by a ball and socket at A and by two cables EBF and DC, cable EBF passes around a frictionless pulley at B. Consider the force P=370lb.
Problem 04.110.b - Determine the tension in the cables supporting the boom
Determine the tension in each cable.
The tension in cable EBF is lb.
The tension in cable DC is Ib.
Problem 0 4 . 1 1 0 - Boom support tension A 7 -

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
