Question: Problem 0 5 . 0 2 2 - First moment of a composite area The horizontal x - axis is drawn through the centroid C

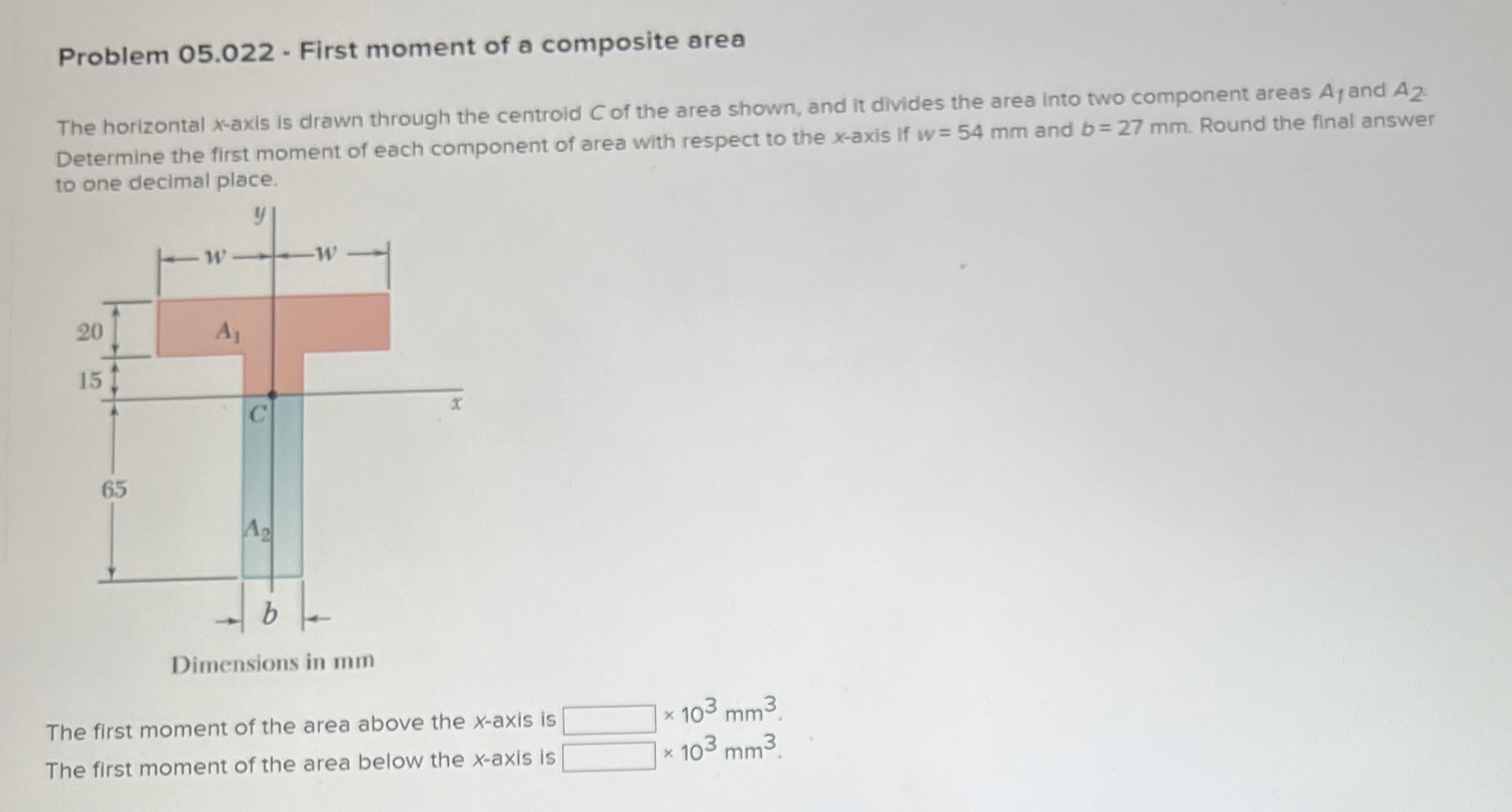

Problem 05.022- First moment of a composite area
The horizontal x-axis is drawn through the centroid C of the area shown, and it divides the area into two component areas A1 and A2 Determine the first moment of each component of area with respect to the x-axis if w=54mm and b=27mm. Round the final answer to one decimal place.
The first moment of the area above the x-axis is q,103mm3
The first moment of the area below the x-axis is q,103mm3.
Problem 0 5 . 0 2 2 - First moment of a composite
