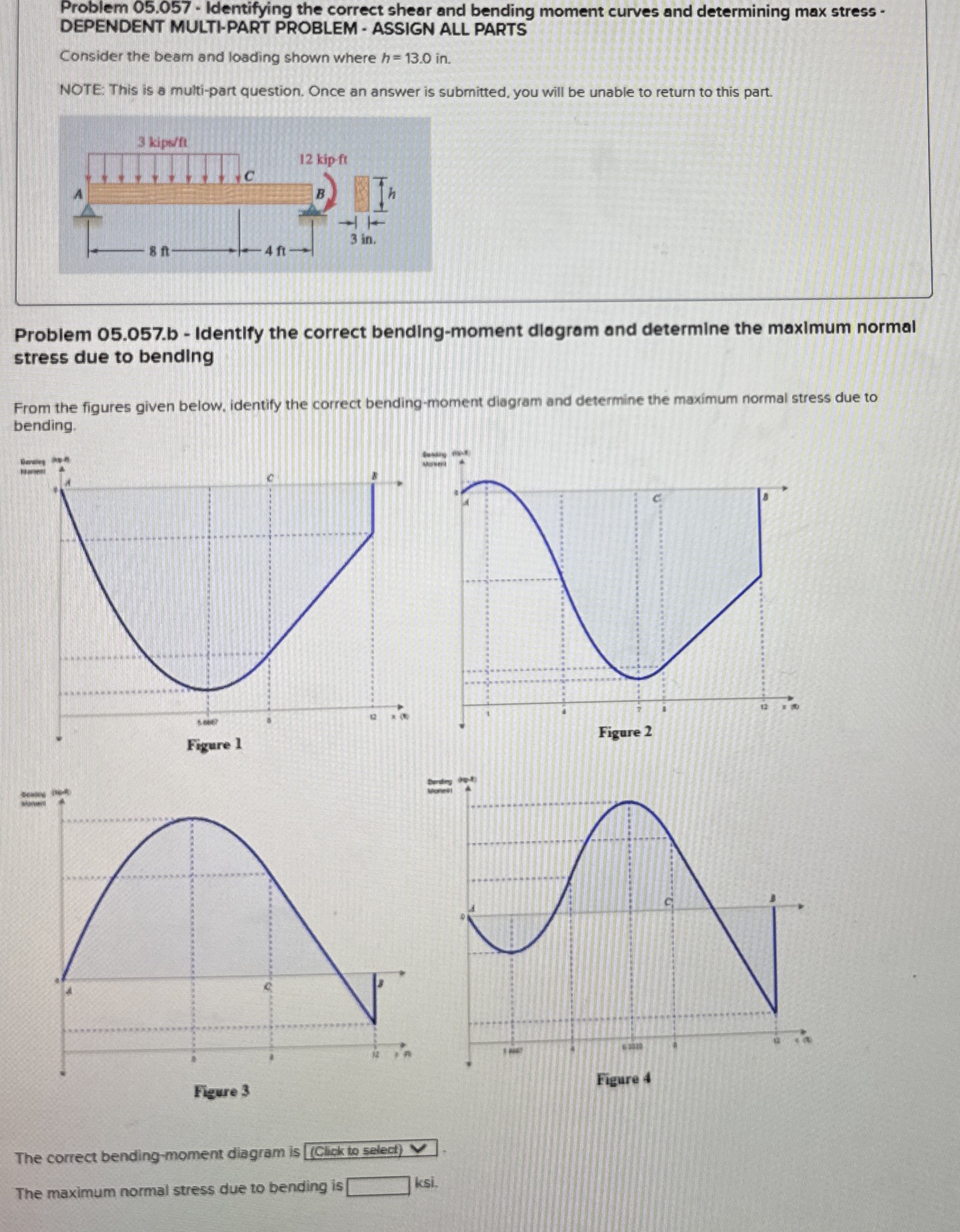

Problem $05\mathrm{.}057-$ Identifying the correct shear and bending moment curves and determining max stress DEPENDENT MULTI$-$PART PROBLEM $-$ ASSIGN ALL PARTS

Consider the beam and loading shown where $h=13\mathrm{.}0in.$

NOTE: This is a multi$-$part question. Once an answer is submitted, you will be unable to return to this part.

Problem $05\mathrm{.}057.$b $-$ Identify the correct bending$-$moment dlogram and determine the maximum normal stress due to bending

From the figures given below, identify the correct bending$-$moment diagram and determine the maximum normal stress due to bending.

Emem

tent

The correct bending$-$moment diagram is $($Click to seled$)$ V $.$

The maximum normal stress due to bending is

ksi.
