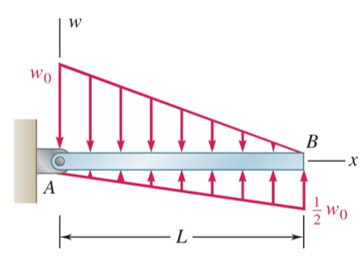

Problem 07.087- A beam with triangular distributed loads
Consider the given beam and loading
Problem 07.087.b - Location and maximum value of the bending moment
Identify the magnitude and location of the maximum bending moment.
(multiple choice)
Mmax =1/4(w0L^2), at x=(L/3)
Mmax =1/4(w0L^2), at x=(L)
Mmax =1/27(w0L^2), at x=(L)
Mmax =1/27(w0L^2), at x=(L/3)
