Question: Problem 0 8 . 0 1 0 - Power transmitted with power screw A single square - thread screw has an input power of 3

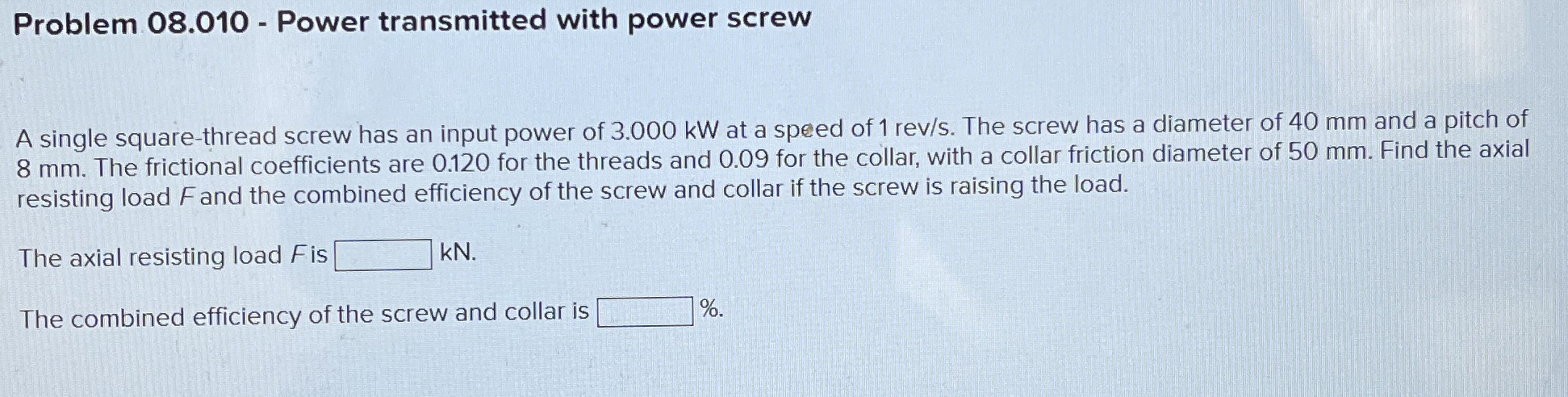

Problem 08.010- Power transmitted with power screw
A single square-thread screw has an input power of 3.000 kW at a speed of 1revs. The screw has a diameter of 40 mm and a pitch of 8 mm . The frictional coefficients are 0.120 for the threads and 0.09 for the collar, with a collar friction diameter of 50 mm . Find the axial resisting load F and the combined efficiency of the screw and collar if the screw is raising the load.
The axial resisting load F is kN .
The combined efficiency of the screw and collar is %.
Problem 0 8 . 0 1 0 - Power transmitted with
