Question: Problem 0 9 . 0 7 6 - Using the superposition method, determine the deflection and slope a points for the cantilever beam For the

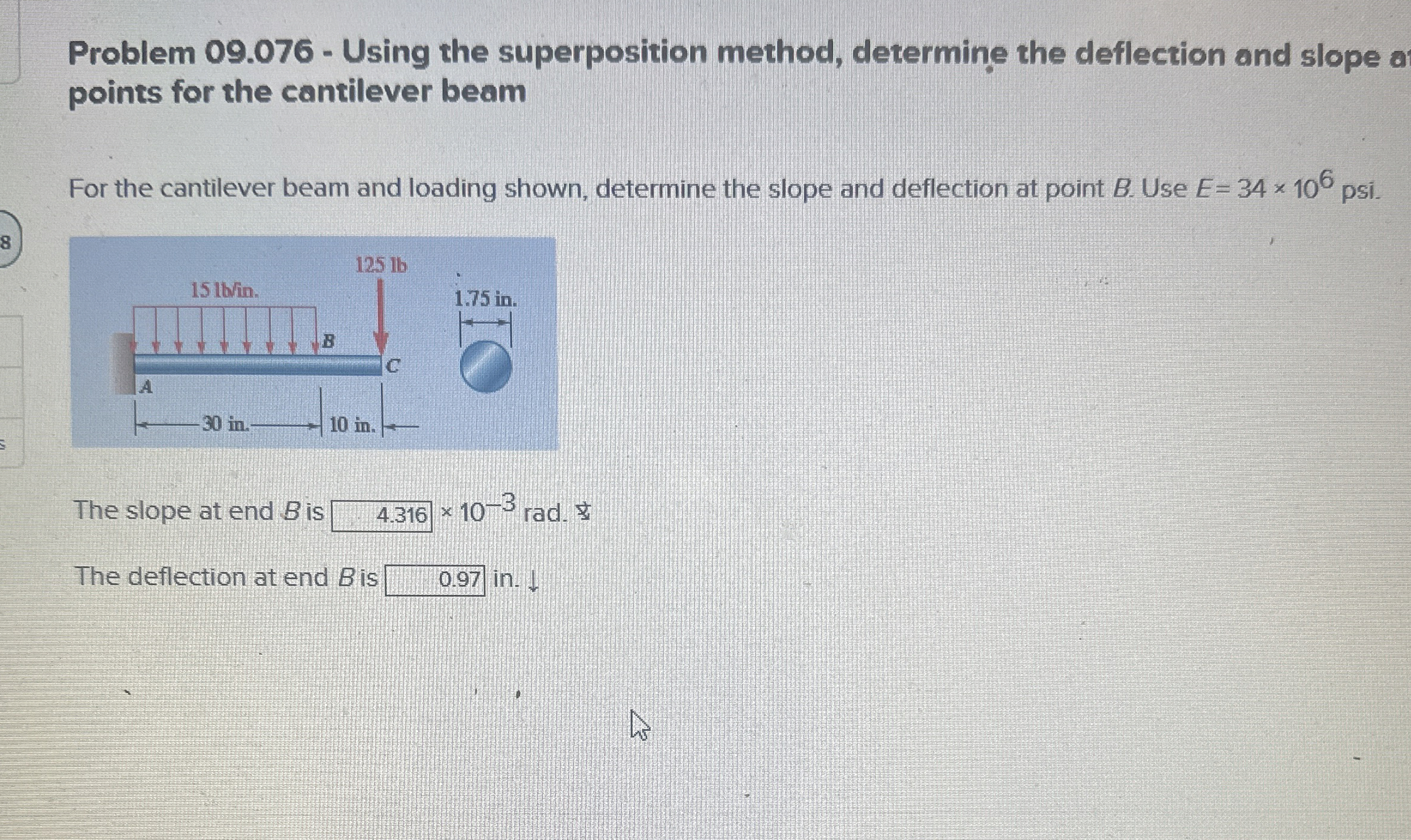

Problem 09.076- Using the superposition method, determine the deflection and slope a points for the cantilever beam
For the cantilever beam and loading shown, determine the slope and deflection at point B. Use E=34106 psi.
The slope at end B is 10-3rad.
The deflection at end B is |in. darr
Problem 0 9 . 0 7 6 - Using the superposition
