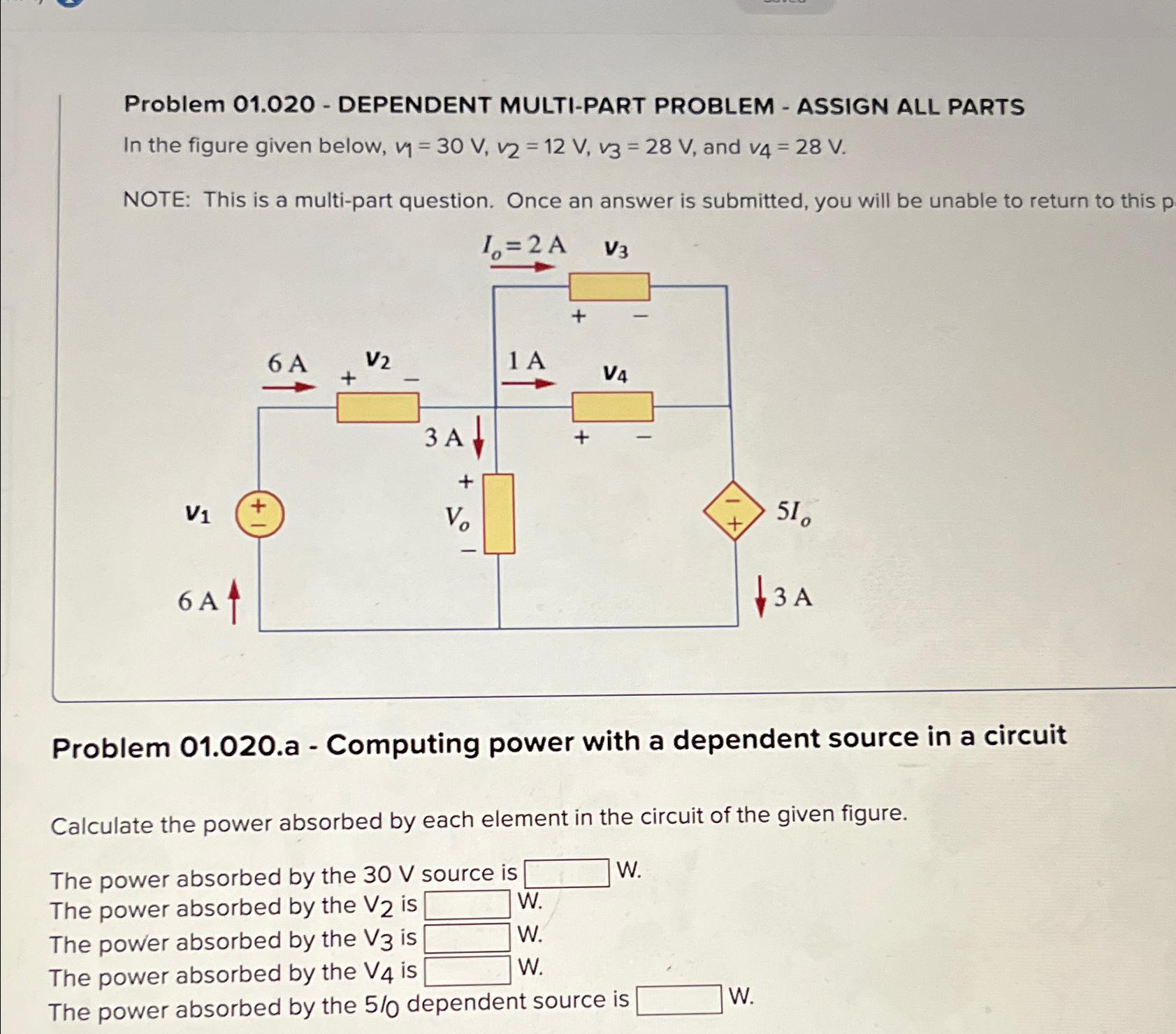

Problem 01.020 - DEPENDENT MULTI-PART PROBLEM - ASSIGN ALL PARTS\ In the figure given below,

v_(1)=30V,v_(2)=12V,v_(3)=28V

, and

v_(4)=28V

.\ NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to return to this

p

\ Problem 01.020.a - Computing power with a dependent source in a circuit\ Calculate the power absorbed by each element in the circuit of the given figure.\ The power absorbed by the

30V

source is W.\ The power absorbed by the

V_(2)

is\ W.\ The power absorbed by the

V_(3)

is\ W.\ The power absorbed by the

V_(4)

is\ W.\ The power absorbed by the

(5)/(0)

dependent source is\ W.

Problem 01.020 - DEPENDENT MULTI-PART PROBLEM - ASSIGN ALL PARTS In the figure given below, v1=30V,v2=12V,v3=28V, and v4=28V. NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to return to this Problem 01.020.a - Computing power with a dependent source in a circuit Calculate the power absorbed by each element in the circuit of the given figure. The power absorbed by the 30V source is W. The power absorbed by the V2 is W. The power absorbed by the V3 is W. The power absorbed by the V4 is W. The power absorbed by the 5/0 dependent source is W
