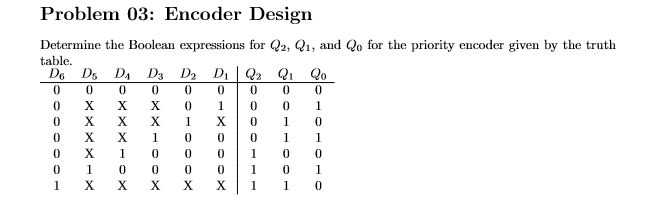

Question: Problem 03: Encoder Design Determine the Boolean expressions for Q2, Qi, and Qo for the priority encoder given by the truth table. 0 X X

Problem 03: Encoder Design Determine the Boolean expressions for Q2, Qi,

Problem 03: Encoder Design Determine the Boolean expressions for Q2, Qi, and Qo for the priority encoder given by the truth table. 0 X X X 01 0 01 0 X X 1 00011 0 X 10 00 0 0

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Databases Questions!

I need help with this problem ,Thank you Determine the Boolean expressions for Q_2, Q_1, and Q_0 for the priority encoder given by the truth table
