Question: Problem 1 0 . 0 2 6 - Mesh Analysis with voltage sources Use mesh analysis to find the output current I O in the

Problem 10.026- Mesh Analysis with voltage sources

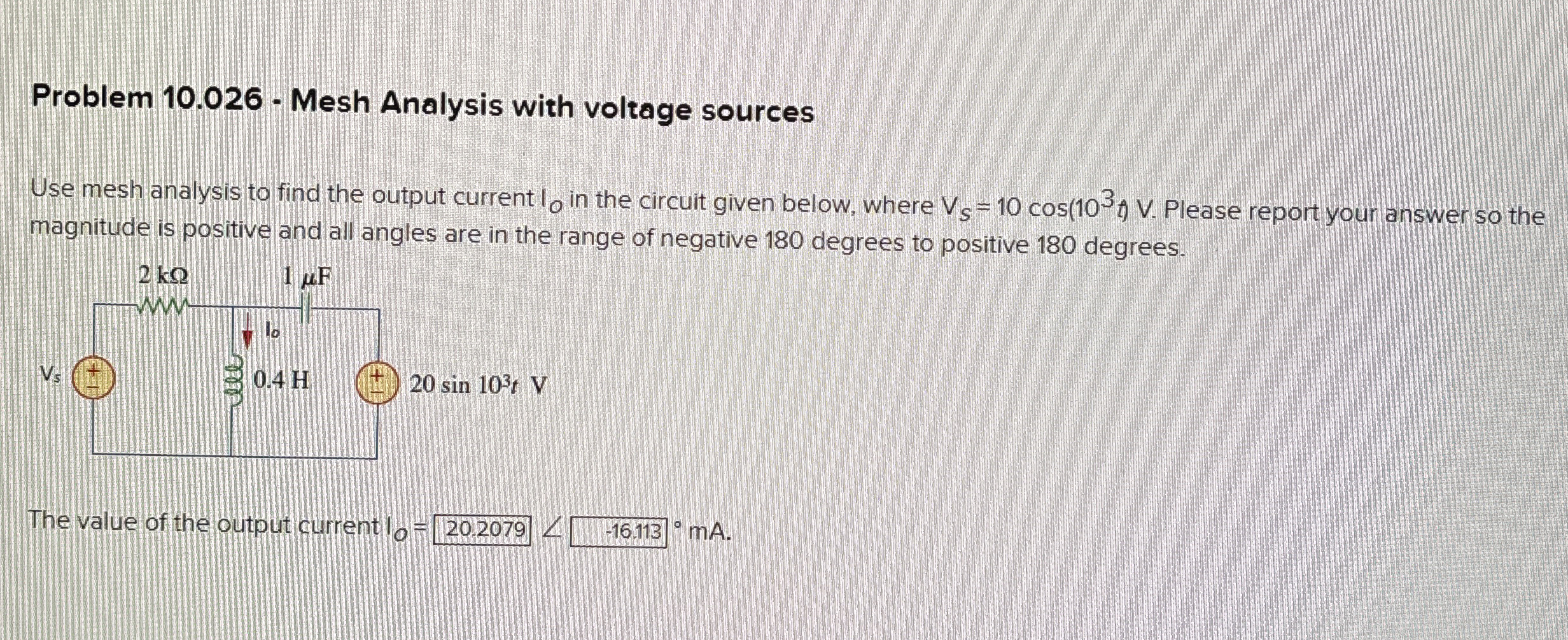

Use mesh analysis to find the output current IO in the circuit given below, where VS=10cos(103t)V. Please report your answer so the magnitude is positive and all angles are in the range of negative 180 degrees to positive 180 degrees.
The value of the output current 10=20.2079-16.113mA.
Problem 1 0 . 0 2 6 - Mesh Analysis with voltage

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
