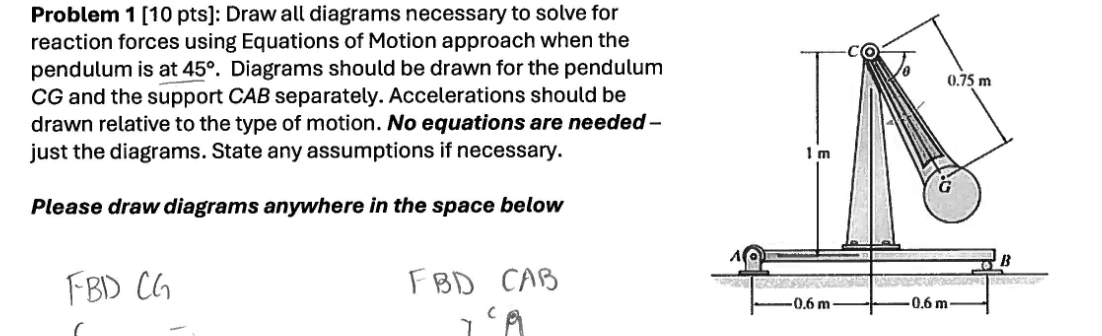

Problem $1[10$ pts$]$: Draw all diagrams necessary to solve for reaction forces using Equations of Motion approach when the pendulum is at $\backslash (45^\{\backslash$circ$\}\backslash ).$ Diagrams should be drawn for the pendulum $\backslash ($ C G $\backslash )$ and the support CAB separately. Accelerations should be drawn relative to the type of motion. No equations are needed just the diagrams. State any assumptions if necessary.

Please draw diagrams anywhere in the space below

FBD CG

$\backslash ($ F B D C A B $\backslash )$
