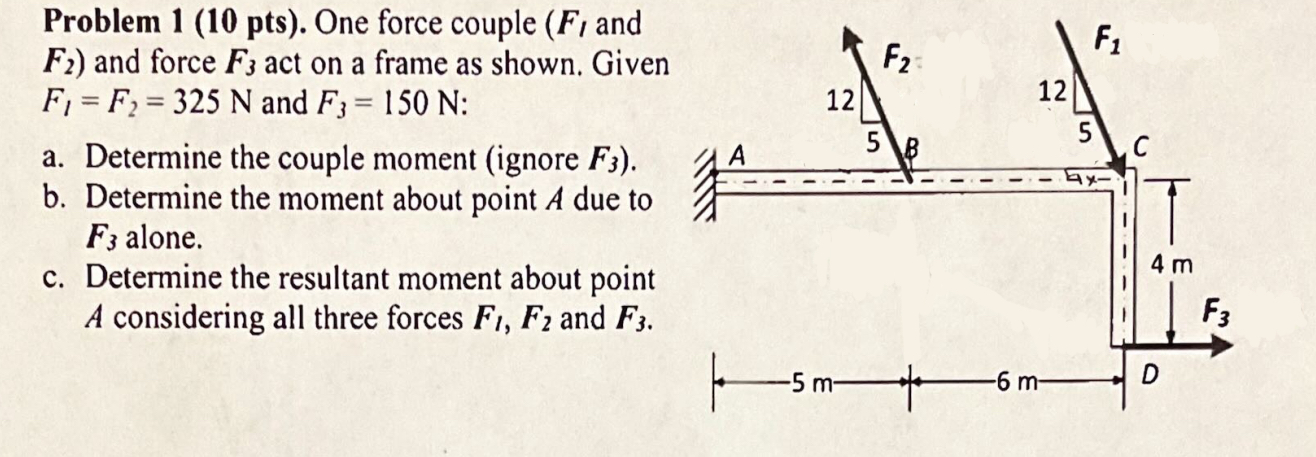

Question: Problem 1 ( 1 0 pts ) . One force couple ( F l and F 2 ) and force F 3 act on a

Problem 1(10 pts). One force couple (Fl and
F2) and force F3 act on a frame as shown. Given
F1=F2=325N and F3=150N :
a. Determine the couple moment (ignore F3).
b. Determine the moment about point A due to
F3 alone.
c. Determine the resultant moment about point
A considering all three forces F1,F2 and F3.
Problem 1 ( 1 0 pts ) . One force couple ( F l

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
