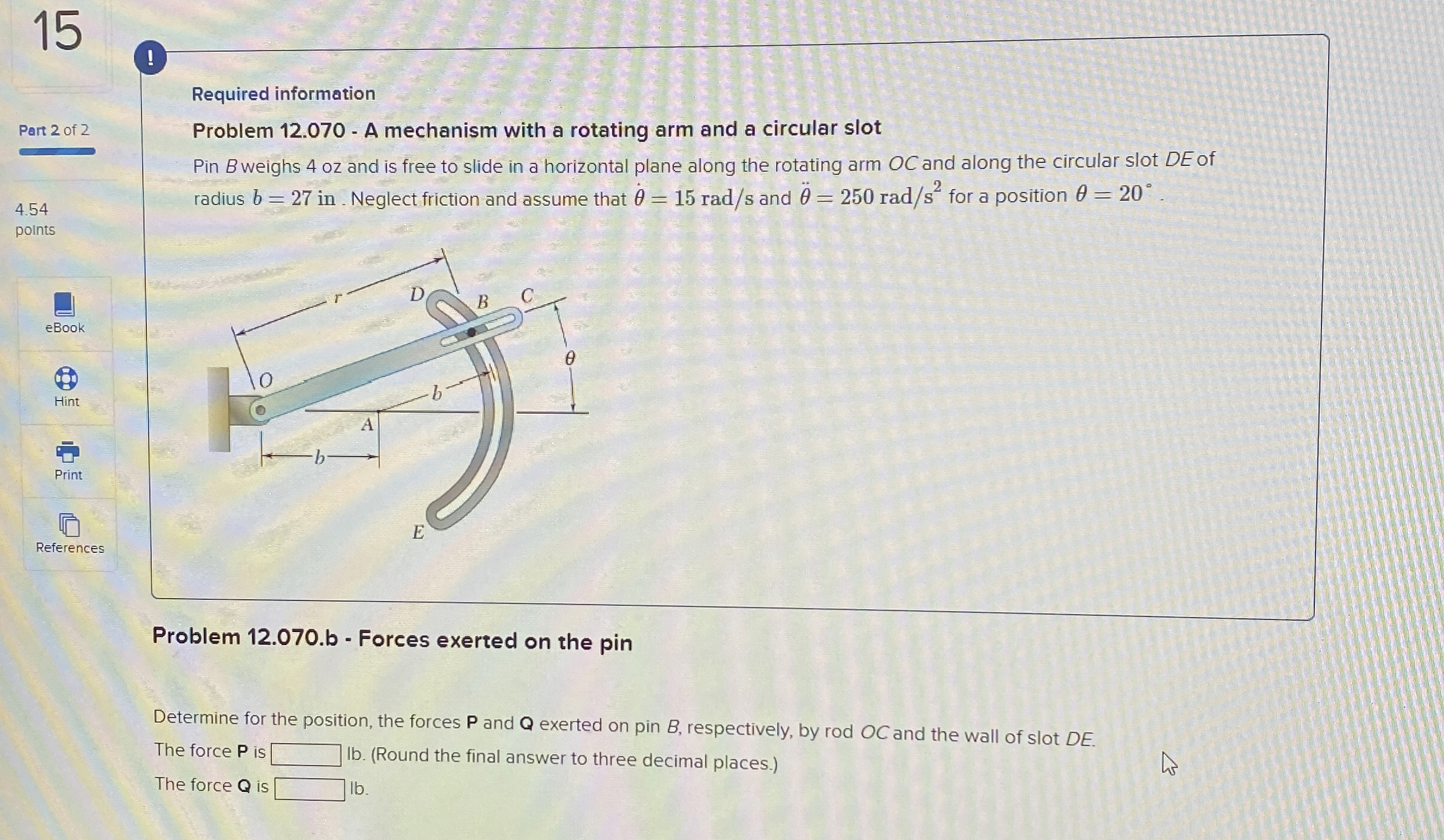

Question: Problem 1 2 . 0 7 0 . b - Forces exerted on the pin Determine for the position, the forces P and Q exerted

Problem 12.070.b - Forces exerted on the pin
Determine for the position, the forces P and Q exerted on pin B, respectively, by rod OC and the wall of slot DE.
The force P is
lb.(Round the final answer to three decimal places.)
The force Q is
lb.
Problem 1 2 . 0 7 0 . b - Forces exerted on the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
