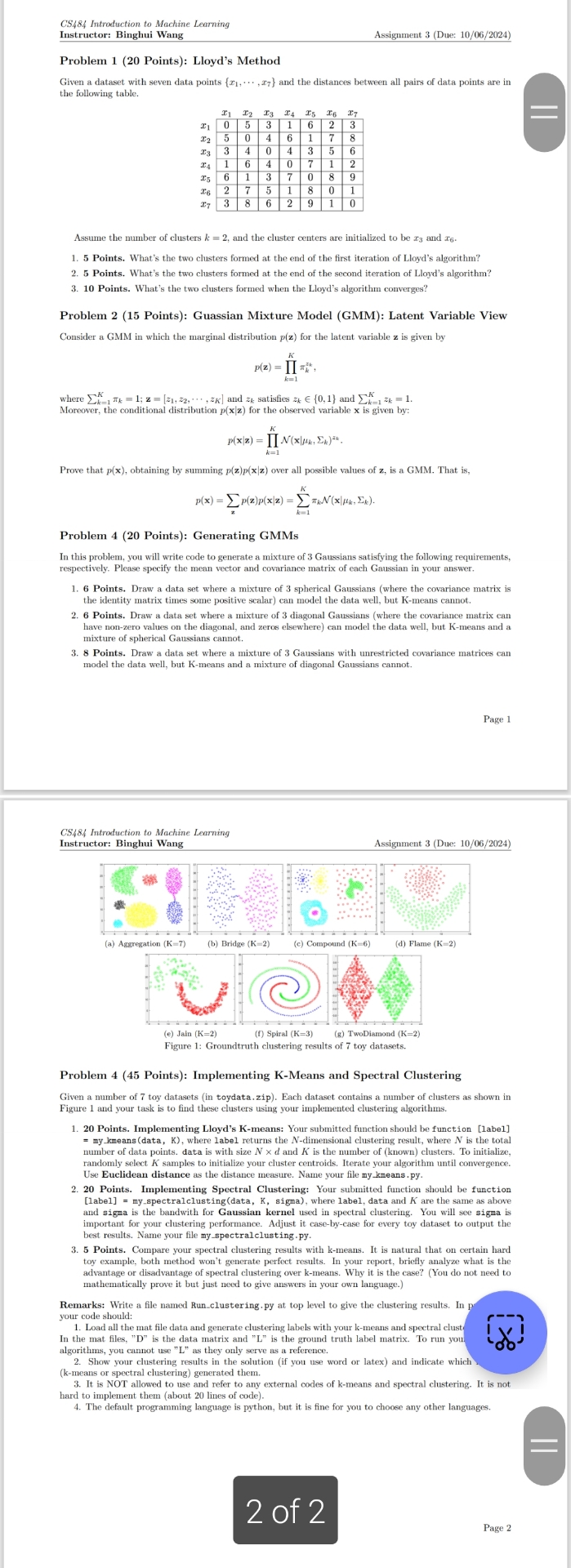

Problem $1(20$ Points$)$: Lloyd's Method

Given a dataset with seven data points $\{x_1,$cdots,$x_7\}$ and the distances between all pairs of data points are in

the following table.

Assume the number of clusters $k=2,$ and the cluster centers are initialized to be $x_3$ and $x_6.$

$5$ Points. What's the two clusters formed at the end of the first iteration of Lloyd's algorithm?

$5$ Points. What's the two clusters formed at the end of the second iteration of Lloyd's algorithm?

$10$ Points. What's the two clusters formed when the Lloyd's algorithm converges?

Problem $2(15$ Points$)$: Guassian Mixture Model $($GMM$)$: Latent Variable View

Consider a GMM in which the marginal distribution $p(z)$ for the latent variable $z$ is given by

$p(z)=pro{d}_k=1^K{}_k^{z_k}$

where ${\displaystyle \underset{k=1}{\overset{K}{}}}{}_k=1$;$z=[z_1,z_2,$cdots,$z_K]$ and $z_k$ satisfies $z_{k}in\{0,1\}$ and ${\displaystyle \underset{k=1}{\overset{K}{}}}{z}_k=1.$

Moreover, the conditional distribution $(z|)$ for the observed variable $x$ is given by:

$(z|)({}_k,{}_k|)$

Prove that $p(x),$ obtaining by summing $(z|)$ over all possible values of $z,$ is a GMM$.$ That is$,$

$(z|)({}_k,{}_k|)$

Problem $4(20$ Points$)$: Generating GMMs

In this problem, you will write code to generate a mixture of $3$ Gaussians satisfying the following requirements,

respectively. Please specify the mean vector and covariance matrix of each Gaussian in your answer

$6$ Points. Draw a data set where a mixture of $3$ spherical Gaussians $($where the covariance matrix is

the identity matrix times some positive scalar$)$ can model the data well, but K$-$means cannot.

$6$ Points. Draw a data set where a mixture of $3$ diagonal Gaussians $($where the covariance matrix can

have non$-$zero values on the diagonal, and zeros elsewhere$)$ can model the data well, but K$-$means and a

mixture of spherical Gaussians cannot.

$8$ Points. Draw a data set where a mixture of $3$ Gaussians with unrestricted covariance matrices can

model the data well, but K$-$means and a mixture of diagonal Gaussians cannot.

Problem $4(45$ Points$)$: Implementing K$-$Means and Spectral Clustering

Given a number of $7$ toy datasets $($in toydata. zip$).$ Each dataset contains a number of clusters as shown in

Figure $1$ and your task is to find these clusters using your implemented clustering algorithms.

$20$ Points. Implementing Lloyd's K$-$means: Your submitted function should be function $[$label$]$

$=$ my kmeans $($data$,$ K$),$ where label returns the $N-$dimensional clustering result, where $N$ is the total

number of data points. data is with size $Nd$ and $K$ is the number of $($known$)$ clusters. To initialize,

randomly select $K$ samples to initialize your cluster centroids. Iterate your algorithm until convergence.

Use Euclidean distance as the distance measure. Name your file my

ckeeans.py$.$

$20$ Points. Implementing Spectral Clustering: Your submitted function should be function

$[$label$]=$ my$\_$spectralclusting$($data$,$ K $,$ sigma$),$ where label, data and $K$ are the same as above

and sigma is the bandwith for Gaussian kernel used in spectral clustering. You will see sigma

important for your clustering performance. Adjust it case$-$by$-$case for every toy dataset to output the

best results. Name your file

my$-$spectralclusting.py$.$

$5$ Points. Compare your spectral clustering results with k$-$means. It is natural that on certain hard

toy example, both method won't generate perfect results. In your report, briefly analyze what is the

advantage or disadvantage of spectral clustering over $k-$means. Why it is the case? $($You do not need to

mathematically prove it but just need to give answers in your own language.$)$

Remarks: Write a file named Run$\_$clustering.py at top level to give the clustering results. In

your code should:

Load all the mat file data and generate clustering labels with your k$-$means and spectral clust

In the mat files, $"$D$"$ is the data matrix and $"$L$"$ is the ground truth label matrix. To run you

algorithms, you cannot use $"$L$"$ as they only serve as a reference.

algorithms, you cannot use $"$L$"$ as they only serve as a reference.

$2.$ Show your clustering results in the solution $($if you use word or latex$)$ and indicate which

$($k$-$means or spectral
