Question: Problem 1 . ( 2 0 pts ) Determine if the following statements are true of false, ( Correct answer. + 2 , no answer.

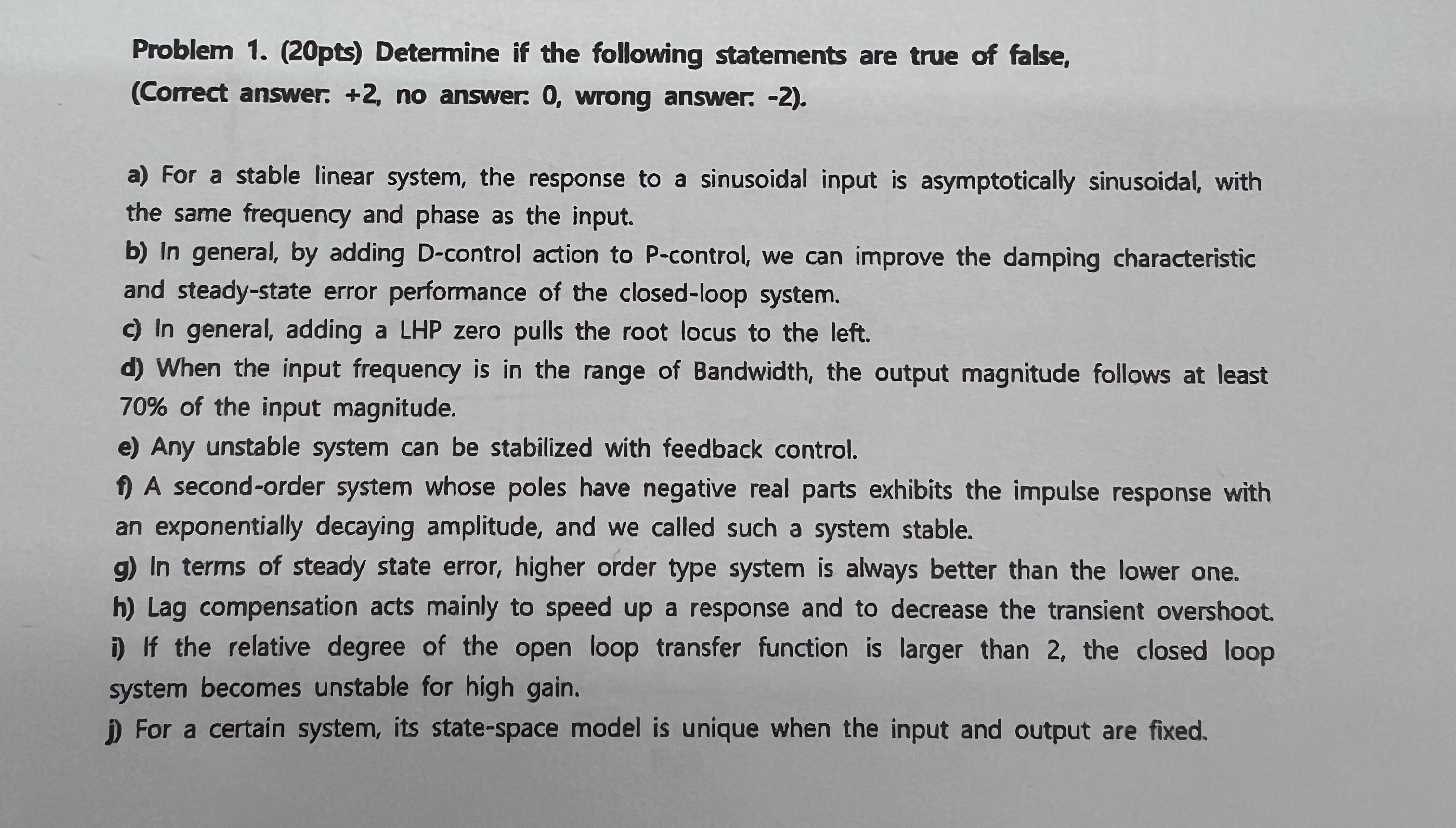

Problem 1.(20pts) Determine if the following statements are true of false,
(Correct answer. +2, no answer. 0, wrong answer. -2).
a) For a stable linear system, the response to a sinusoidal input is asymptotically sinusoidal, with the same frequency and phase as the input.
b) In general, by adding D-control action to P-control, we can improve the damping characteristic and steady-state error performance of the closed-loop system.
c) In general, adding a LHP zero pulls the root locus to the left.
d) When the input frequency is in the range of Bandwidth, the output magnitude follows at least 70% of the input magnitude.
e) Any unstable system can be stabilized with feedback control.
f) A second-order system whose poles have negative real parts exhibits the impulse response with an exponentially decaying amplitude, and we called such a system stable.
g) In terms of steady state error, higher order type system is always better than the lower one.
h) Lag compensation acts mainly to speed up a response and to decrease the transient overshoot.
i) If the relative degree of the open loop transfer function is larger than 2, the closed loop system becomes unstable for high gain.
j) For a certain system, its state-space model is unique when the input and output are fixed.
Problem 1 . ( 2 0 pts ) Determine if the
