Question: Problem 1 ( 2 4 points ) The switch in the circuit shown below has been open for a long time. At time t =

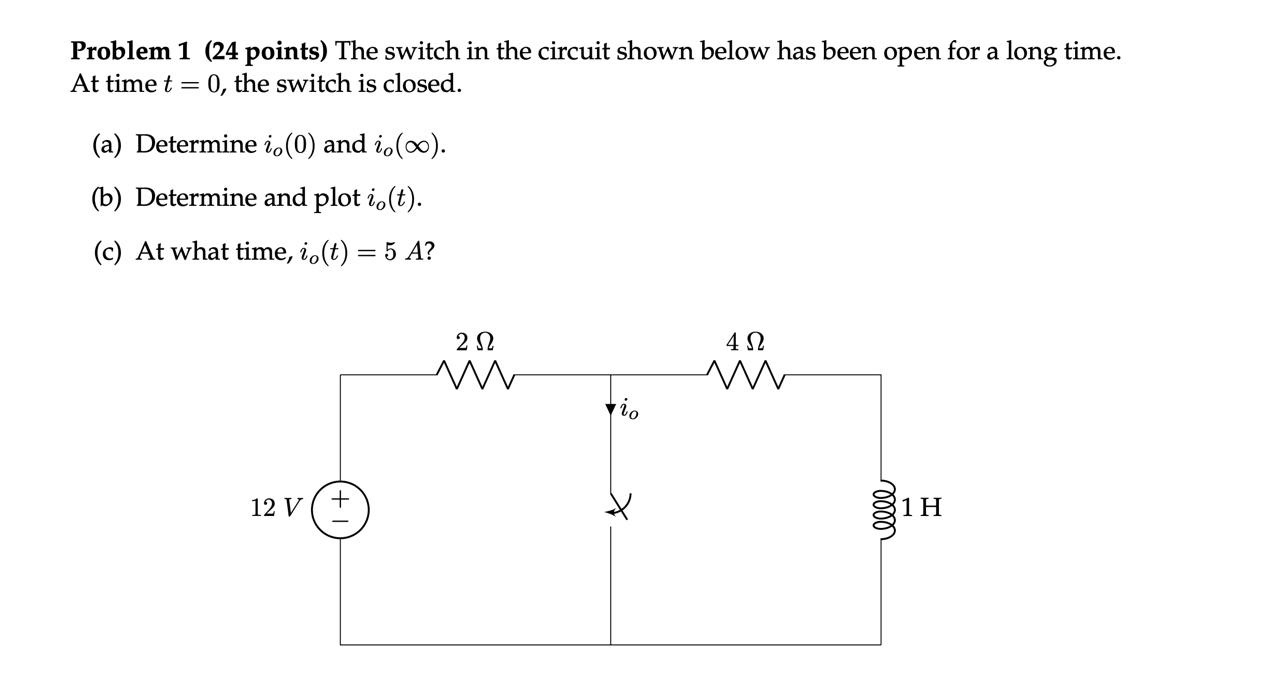

Problem 1(24 points) The switch in the circuit shown below has been open for a long time. At time t=0, the switch is closed.
(a) Determine io(0) and io().
(b) Determine and plot io(t).
(c) At what time, io(t)=5 A?
Problem 1 ( 2 4 points ) The switch in the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
